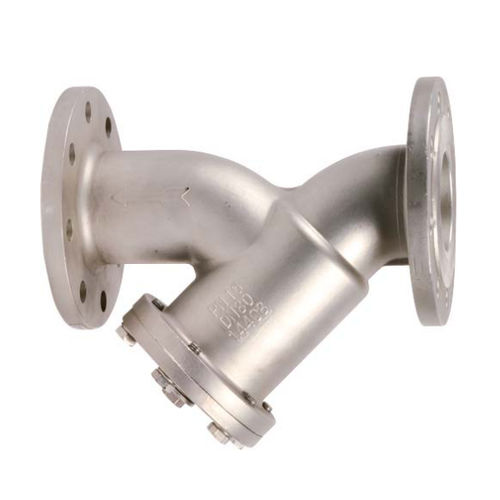

Strainer filter 240 series

hydrauliccompressed airwith cartridge

The 240 series, which is manufactured by Sferaco, is a y-type strainer made of stainless steel, and is suitable to use in applications that deal with compressed air in the chemical, pharmaceutical, and petrochemical industries. The unit is integrated with ISO PN16 flanges together with a bolted bonnet that has a BSP threaded draining cap. The strainer has a maximum pressure capacity of up to 16 bar, and has an ambient temperature that ranges from 20 °C up to 200 °C. SPECIFICATIONS : • - Removable stainless Steel filter • - R.F. Flanged PN25/40 . PN40 from DN200 to 300 • - Horizontal or vertical position with descendant fluid (respect the flow direction indicated by the arrow) • - Mesh 1mm up to DN 50,1.25 mm from DN 65 to 80.1.6 mm from DN100 to 200. 4 mm over • - Bolted bonnet with drainmg cap threaded BSP • - Blue paintmg RAL 5002. 80 pm thickness USE : • - For ail common fluids of 2rc group • - Min Température Ts : - 29°C • - Max Température Ts :+425°C • - Max Pressure Ps : 40 bars ( see graph )
