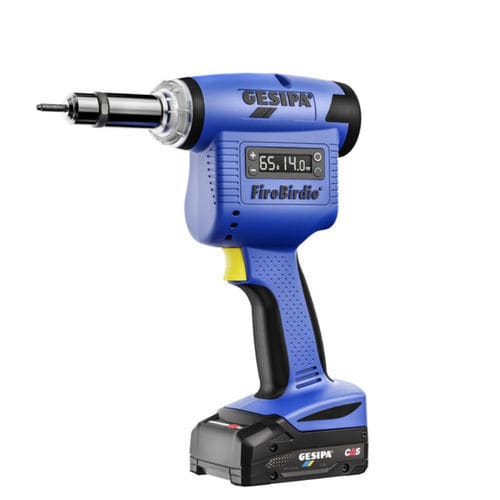

Brushless DC riveter FireBirdie CAS®

motor-drivenwith brushless DC motorbattery-powered

Product description
The FireBirdie® was developed specifically for industrial applications where reliability, efficiency and ease of use are paramount. The tool enables continuous drilling and undrilling – even with long or pre-inserted blind rivet nuts. The drilling process starts automatically when pressure is applied, and undrilling is possible at any time. This ensures a smooth process and increases process reliability. For maximum control, three operating modes are available via the high-resolution display: force-controlled, distance-controlled or combined in ThreadSafe mode. This allows the FireBirdie® to be precisely tailored to the respective application and ensures consistently high quality and reproducible setting results. A particular advantage is the tool-free change of threaded mandrels and nosepieces. The setting sleeve can also be removed without tools by removing the light ring. The length of the thread mandrel can be adjusted by hand or with a spanner in a matter of seconds by simply turning the locking nut directly on the mouthpiece. This significantly reduces set-up times and simplifies use with changing rivet nut sizes. With a stroke of 15 mm and a setting force of 13 kN, the FireBirdie covers a working range up to M8 steel. The tool weighs only approx. 1.8 kg including the battery, making it particularly mobile and ergonomic. The FireBirdie® is manufactured in Germany.

Key attributes

• Weight with battery: 1.70 kg
• Setting force: 13,000 N
• Working range: Blind rivet nuts M3 to M6 (all materials) and up to M8 in steel

Technical specification (table)
battery capacity: 2.00 Ah
battery voltage: 18 V
drive: Brushless DC motor (BLDC)
number of included batteries: 1.00 piece
Working range in steel: 8.00 mm
operating mode: Battery-powered
Weight with battery: 1.70 kg
Tool stroke: 15 mm
Weight carcass: 1.30 kg
Scope of delivery: FireBirdie, threaded mandrel and nosepiece M4 - M6, 1x hexagon socket wrench, quick setting card, setting force presetting card, 1x 2.0 Ah CAS battery, CAS charger in L-Boxx
Setting stroke: 15.00 mm
Setting force: 13,000 N
Potential working range in aluminium: M6
Potential working range in steel: M5
Potential working range in stainless steel: M6
Packaging - Weight with packaging and accessories: 4.00 kg

Included files

• Safetyinfo_CAS_Batteries_EN_2021.pdf (safety information for CAS batteries)

Features / technical specifications

• Model: FireBirdie CAS
• Battery: 18 V, 2.00 Ah (1 included)
• Drive: Brushless DC motor (BLDC)
• Setting force: 13,000 N
• Tool stroke / Setting stroke: 15 mm
• Working range: Blind rivet nuts M3–M6 (all materials), up to M8 in steel
• Potential working ranges: aluminium M6, steel M5, stainless steel M6
• Weight (with battery): 1.70 kg; weight carcass: 1.30 kg; packaged weight with accessories: 4.00 kg
• Scope of delivery: FireBirdie, threaded mandrel and nosepiece M4–M6, hexagon socket wrench, quick setting card, setting force presetting card, 1x 2.0 Ah CAS battery, CAS charger, L-Boxx
• Manufacturing origin: Germany
