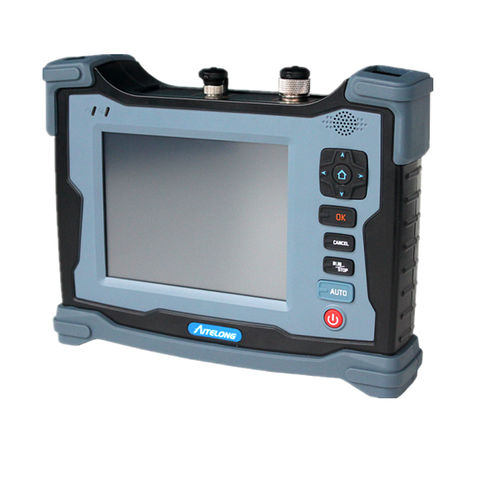

OTDR module for fiber optic testing SAT-18EA series

• Easy-operation mode with automatic trace diagnostics, one-button setup and events detection; • Markers for distance, attenuation, reflectance, and splice loss; • Dynamic range up to 45dB; • Event dead zone is less than 0.6m (Type III); • Attenuation dead zone is less than 4m (Type III); • The sampling points up to 256,000 (Type II & III); • SR-4731.sor file formats; • Support VFL; • Support iOTA(Optional, for Type III only); • Support power meter (Optional, +10 to -60 dBm); • Support light source (Optional, Use OTDR port, 1310nm/1550nm, >-4dBm); • Support 400X fiber optic microscope(Optional); • Remote measurement via RJ45 connection using AITELONG OTDR Desktop software.
