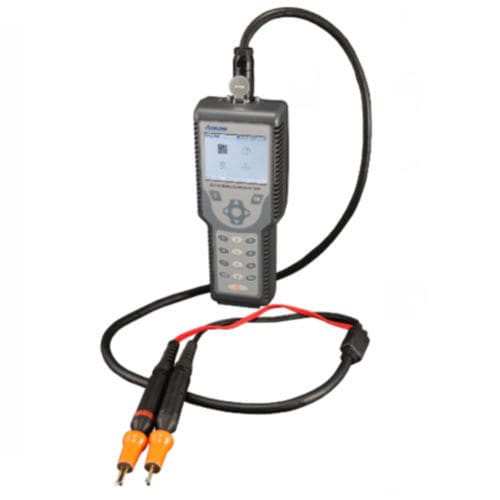

Internal resistance tester SAT-AC

conductancebatteryindustrial

SAT-AC Battery Conductance Tester is a multi-function and portable digital instrument to test lead acid stationary battery running condition and parameters quickly and precisely. It can display and record many key parameters for multi-groups like battery string and each battery cell’s voltage, conductance, connecting strip resistance, battery’s internal resistance and so on; offer the ability to distinguish battery’s condition effectively and accurately; compose with intelligent PC measurement analyzing software, user can track battery’s decay trend, and alarm beforehand to help technician and administrators process according to status. • High precision online testing, full automatically switch the testing range, large capacity data storage • 320*240 LCD screen • Smart and easy-to-use design, one person can finish all test • Transmit the testing data to PC by Micro SD card to carry out analysis of battery according to the history data. • Display value of voltage, conductance, internal resistance. • Enhanced over voltage protecting function. • Automatically recovery the over current protecting function. • Use the SOC chip to improve the tester stability. • Powered by big capacity Lithium cell or adapter. • Low battery warning to guarantee test precision. • Automatic testing mode for user’s convenience. • Powerful PC software for manage the testing data: • Automatically analyze battery’s SOH (state-of-health). • Building the history record database, describe the battery life span curve. • Contrastive analyzing for each battery cell within the same battery string. • All batteries are administrated by different SOH (excellent, good, medium and bad)
