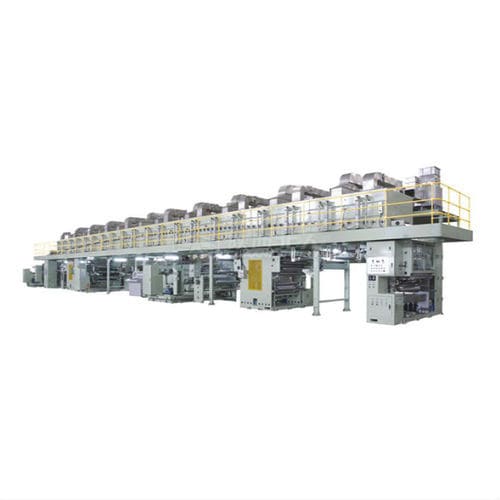

Silicone coating and laminating machine

for paperfor labelsfor PET film

Overview
Our Release Paper Coating Machine delivers precision and consistent coating quality for substrates such as PET film and paper. Manufactured by Shaanxi Beiren Printing Machinery Co., Ltd., the line is engineered for stable coating performance, efficient silicone consumption and high-speed production of release liners used in labels, hygiene, medical and composite industries.

Key features

• Precision application with five-roller and six-roller coating systems
• Coating wet weight control: 0.5 - 2 g/m²
• High-speed operation up to 300 m/min
• Coating width options: 1350 mm and 1650 mm
• Maximum unwind/rewind diameter: Φ1000 mm

Flexible processing capabilities

• Processes PET films from 30 to 50 μm
• Accepts paper stocks from 80 to 150 gsm
• Quick substrate changeover options to maintain throughput and quality

Advanced drying systems

• Total oven length: 16,000 mm (4 × 4000 mm zones)
• Heating options: hot oil, steam, hot air, natural gas, electric

Applications

• Self-adhesive label production — release liners for die-cutting and web handling
• Hygiene and medical products — controlled release for wipes, diapers, medical dressings
• Industrial composites — defect-free coated surfaces for leather, carbon-fiber pre-pregs and other composite processes

Company & manufacturing highlights
Shaanxi Beiren Printing Machinery Co., Ltd. provides decades of production experience, vertical integration of key components and a senior R&D team. Factory testing includes coating weight consistency, curing completeness and surface quality inspection prior to shipment.

Technical Specifications (table)
Parameter : Specification
Base Materials : PET 30-50 μm, Paper 80-150 gsm
Maximum Operating Speed : 300 m/min
Coating Width Options : 1350 mm, 1650 mm
Unwind Diameter (Max) : Φ1000 mm
Rewind Diameter (Max) : Φ1000 mm
Coating Method : 5-roller & 6-roller system
Coating Wet Weight Range : 0.5 - 2 g/m²
Total Oven Length : 16,000 mm (4 zones)
Heating Options : Hot oil, steam, hot air, natural gas, electric

Caractéristiques / spécifications techniques

• Base materials: PET 30–50 μm; paper 80–150 gsm
• Max speed: 300 m/min
• Coating widths: 1350 mm, 1650 mm
• Unwind / Rewind max diameter: Φ1000 mm
• Coating method: five-roller & six-roller
• Coating wet weight: 0.5–2 g/m²
• Oven length: 16,000 mm (4 × 4000 mm)
• Drying/heating: hot oil, steam, hot air, natural gas, electric
