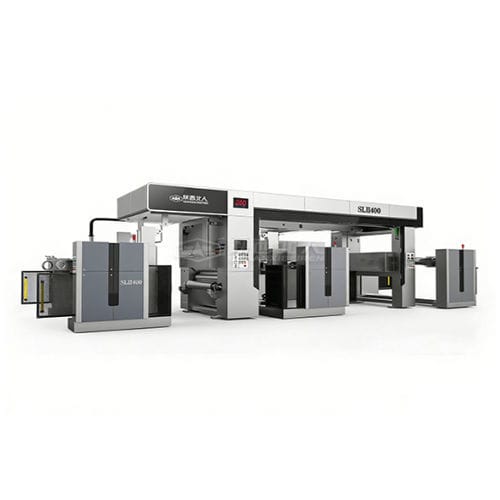

Roll-to-roll laminating machine

solvent-freeautomatedhigh-speed

Overview
Solvent-less lamination machine by Shaanxi Beiren for solvent-free lamination of flexible packaging substrates using 100% solid reactive adhesives (two-component or mono-component). Designed to eliminate VOC emissions, reduce energy consumption versus traditional dry lamination, and comply with food-contact regulations such as FDA 21 CFR 175.105.

Key Features

• No solvent use and zero VOC emissions
• Energy savings of 50–70% compared with traditional dry lamination (no drying tunnel required)
• High production speed up to 400 m/min
• Suitable for food, pharmaceutical, personal care and industrial flexible packaging
• Designed for 100% solid reactive adhesives (two-component or mono-component)
• 4-roll or 5-roll precision multi-roller coating system with metering accuracy adjustable in 1‑micron increments
• Gear-pump driven mixing and dosing unit for accurate stoichiometric adhesive ratios
• Ultra-sensitive tension control with load cells and programmable tension reduction to prevent stretching and layer slip before curing

Typical Materials & Loading/Unloading
Supports BOPP, PE, PET, CPP, LDPE, NY, aluminum foil, paper and composite films. Loading and unloading: pneumatic tape winding plus air expanding shaft.

Applications

• Food packaging: snacks, confectionery, meat, cheese and barrier films (BOPP/CPP, BOPP/VMCPP)
• Pharmaceutical packaging: sachets and cold-formed blisters requiring high chemical purity
• Personal care packaging
• Heavy-duty industrial packaging: PET/ALU/PE and other thick structures requiring strong bond and moisture barrier

Operational Notes & Q&A
Some laminates may show a temporary hazy appearance due to adhesive wetting-out. Increasing nip temperature to 40–50°C and maintaining precise dosing gap settings typically resolves haze; clarity often improves within a 24‑hour curing period. Recommended curing windows: 12–24 hours at 35–45°C before slitting/cutting; allow 48–72 hours for full polymerization to reach complete food-contact compliance. Machine can produce retort-grade laminates when used with appropriate retort adhesives and precise tension control. For maintenance, advanced models offer automatic washing cycles; flush mixing head and rollers with suitable cleaning agents within 20–30 minutes after extended downtime to avoid adhesive curing in the system.

Manufacturer & Production Credentials
Shaanxi Beiren has manufactured machinery since 1967 with over 4,000 machines in operation worldwide. In-house capabilities include a 30,000 m² assembly workshop, annual production exceeding 220 machines, and multiple machining centers imported from Japan and Germany. Quality references: ISO 9001, CE, UL.

Key Technical Specifications
Maximum Speed: 400 m/min
Substrates Supported: BOPP, PE, PET, CPP, LDPE, NY, Aluminum Foil, Paper, Composite Films
Adhesive Type: 100% Solid Reactive (Two-component or Mono-component)
Coating Weight: 1.0–2.0 gsm (adjustable)
Metering Precision: adjustable in 1‑micron increments
Coating System: 4-roll or 5-roll multi-roller coating
Mixing/Dosing: gear-pump driven blender for exact stoichiometric ratios
Tension Control: ultra-sensitive load cells and programmable tension reduction
Loading/Unloading System: pneumatic tape winding + air expanding shaft
Energy Savings: 50–70% vs. traditional dry lamination
VOC Emissions: Zero
Factory Footprint: compact (no drying tunnel required)
