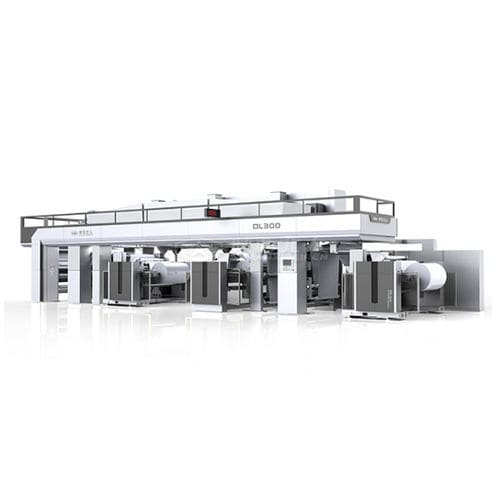

BOPP film coating and laminating machine PVDC

for paperfor plasticsfor packaging

Overview
This PVDC coating dry lamination machine combines PVDC coating and precision dry lamination in a single production line for high-barrier flexible packaging. It is engineered for controlled coating weight, secure web handling and multi-zone drying to meet the requirements of pharmaceutical, food and specialty industrial applications.

Key features

• Integrated PVDC coating and dry lamination system for composite films
• 316L stainless steel contact parts to resist PVDC-related corrosion
• Multi-zone drying with precise temperature control and optional explosion-proof configuration for solvent systems
• Accurate tension and pressure control to protect sensitive substrates and prevent blocking
• Post-lamination cooling zones to lower web temperature and ensure roll quality

Applications

• Pharmaceutical packaging — PVC/PVDC and PET/PVDC composites for moisture-sensitive products
• Food packaging — high-barrier films for MAP (modified atmosphere packaging), preserving freshness and organoleptic properties
• Specialty industrial packaging — coffee, pet food and aroma-sensitive products to prevent oil migration and flavor loss

Summary (page highlights)
Equipment speed (page summary): 300 m/min; Maximum film width: 1250 mm; Unwinding / roll diameter: Φ800 mm; Length of material inside oven: 9 m; Compatible printing/lamination materials: film, aluminum foil, paper. Designed for consistent barrier performance and efficient production.

Technical specifications
Working Width — 600 mm - 1650 mm
Maximum Speed — 120 - 180 m/min
Coating Weight Range — 2.0 - 18.0 gsm
Coating Accuracy — ±0.5 gsm
Tension Control Accuracy — ±0.1 kg
Drying Zones — 4 - 8 independent zones
Temperature Range — 40°C - 180°C
Material Compatibility — PVC, PET, BOPP, PE, BOPA
Power Consumption — 150 - 300 kW
Overall Dimensions — Customized per requirements

Characteristics / technical specifications

• Equipment speed (page summary): 300 m/min
• Maximum film width (page summary): 1250 mm
• Unwinding / roll diameter: Φ800 mm
• Length of material inside oven: 9 m
• Compatible printing/lamination materials: film, aluminum foil, paper; supports PVC/PVDC and PET/PVDC composite structures
• Coating weight range: 2.0–18.0 gsm with ±0.5 gsm accuracy
• Temperature control: 40°C–180°C across 4–8 independent drying zones
• Tension control accuracy: ±0.1 kg
• Power consumption range: 150–300 kW
• Target industries: pharmaceutical, food, daily chemical and other flexible packaging sectors
