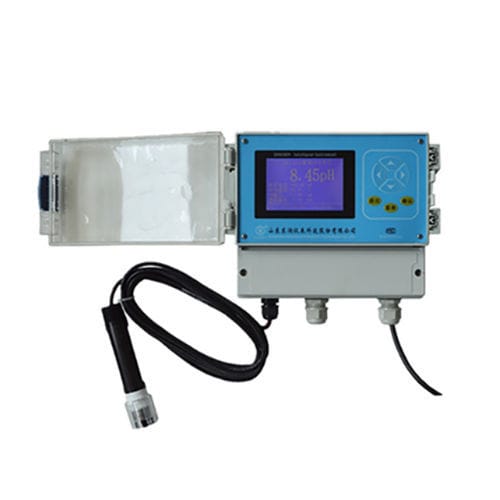

Rubber analyzer PHS-8

petroleumfoodpaper

PHS-8 series intelligent industrial pH/ORP analyzer can be matched with high resistance analog signals pH electrode, and workable in many applications. Advantages All intelligent Accurate measurement Easy to operate & maintain Stable performance Workable for complex applications APPLICATIONS： Chemical industry, petroleum, rubber, paper, food, mining, smelting, steel, electric power, pharmaceuticals, water treatment, etc PRINCIPLE： Glass electrode method Transmitter Specification Measurement range - pH 0~14 ORP -1999～+1999mV Instrument stability - ±0.01pH (±0.1mV) Measurement error - ±0.05pH (±2mV) Instrument resolution - ±0.05pH (±2mV) Analog output - Optional 2-way 4-20mA, Digital communication - RS485 MODBUS protocol Relay outputs - Optional 2-way alarm relay and 1-way cleaning relay (250VAC, 10A) Protection grade - IP65 Dimension (wall-mounted type) - 234×185×118mm Dimension (panel-mounted type) - 96×96×119mm Dimension (explosion-proof type) - 160×126×168mm Sensor Specification Application - Domestic sewage, aquaculture, surface water, common industrial processes Operating temperature - 0-60 ℃ Operating pressure - 0-0.6Mpa Installation - 3/4 “NPT thread connection Cable connection - direct lead out
