Drinking water analyzer DDG-99beveragefoodfor pharmaceutical products
Add to favorites
Compare this product
Characteristics
- Measured entity
- for drinking water
- Application domain
- food, beverage, for pharmaceutical products, for the chemical industry, industrial, process water, surface water
- Measured value
- TDS, pH, conductivity, stability, ORP
- Configuration
- wall-mounted
- Protection level
- explosion-proof
- Other characteristics
- digital, RS485
Description

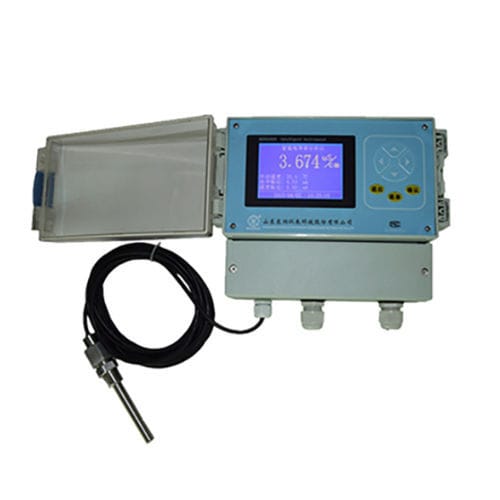

DDG-99/DMD-99 Industrial Conductivity Analyzer consists of a transmitter and a conductivity sensor, widely used in much industrial process water conductivity detection with high accuracy and precision of measurement, response speed fast, small size, easy installation and maintenance, etc.
Transmitter Specification
Measurement range - pH 0~14
ORP -1999～+1999mV
Instrument stability - ±0.01pH (±0.1mV)
Measurement error - ±0.05pH (±2mV)
Instrument resolution - ±0.05pH (±2mV)
Analog output - Optional 2-way 4-20mA,
Digital communication - RS485 MODBUS protocol
Relay outputs - Optional 2-way alarm relay and 1-way cleaning relay (250VAC, 10A)
Protection grade - IP65
Dimension (wall-mounted type) - 234×185×118mm
Dimension (panel-mounted type) - 96×96×119mm
Dimension (explosion-proof type) - 160×126×168mm
Sensor Specification
Conductivity Sensor Parameters
Application - Domestic sewage, aquaculture, surface water, common industrial processes
Operating temperature - 0-60 ℃
Operating pressure - 0-0.6Mpa
Installation - 3/4 “NPT thread connection
Cable connection - direct lead out
Temperature compensation - PT1000 or PT100
Size - 185mm
Maximum diameter - 31mm
Shell material - PP
