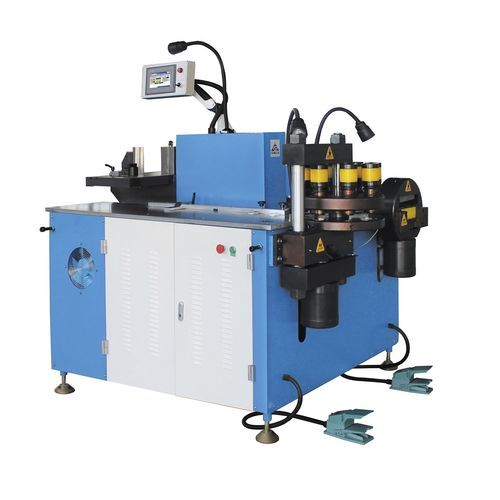

Punching busbar machine BM303-S-3 Series

bendingfixed

BM303-S-3 Series are multifunction busbar processing machines designed by our company (patent number: CN200620086068.7), and the first turret punching machine in China. This equipment could do punching, shearing and bending all at the same time. With appropriate dies, the punching unit could process round, oblong and square holes or emboss a 60*120mm area on busbar. This unit adopts turret-type die kit, capable of storing eight punching or embossing dies, the operator could select one punching dies within 10 seconds or completely replace the punching dies within 3 minutes. The shearing unit choose the single shear method, make no scrap while shearing the material. And this unit adopts round integral structure which is effective and capable of long service life. The bending unit could process level bending, vertical bending, elbow pipe bending, connecting terminal, Z-shape or twist bending by change the dies. This unit is designed to be controlled by PLC parts, these parts cooperate with our control program could ensure you have easy operate experience and high accuracy workpiece, and the whole bending unit placed on a independent platform which ensure all three units could work at the same time. Control panel, man-machine interface: he software is simple to operate, has a storage function, and is convenient for repeated operations. The machining control adopts the numerical control method, and the machining accuracy is high.
