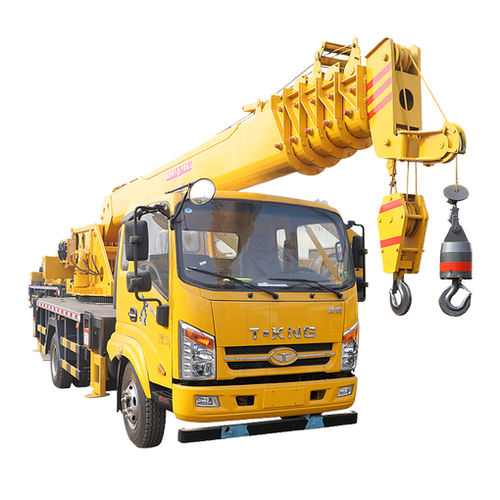

Mobile crane HWTJ10T

telescopicfoldingbuilding

Automobile crane is a type of crane mounted on a regular or specially designed truck chassis, with separate driver's cabin and crane operator's cabin. The chassis performance of an automobile crane is equivalent to that of a cargo truck with the same total weight, meeting the technical requirements for road vehicles, allowing it to travel smoothly on various types of roads. This type of crane typically has two control cabins, one for operating from the upper part of the crane and the other for operating from the lower part. Stabilizing outriggers are extended during operation to ensure stability. Main Parameters: Tire model - 750-16 Travel speed - 80km/h Wheelbase - 3.36m Main hook winch - Inclined-axis winch Auxiliary hook winch - W15D Reducer model - Planetary gearbox Rotation support - 900# Engine pump - 50# Motor pump - 40# Central rotation - Electric rotation Main frame size - 300*200mm Rear offset top - have Steering type - power-assisted Braking method - air brake Transmission - Wabco535 Axle model - ront/rear axle1080-1069
