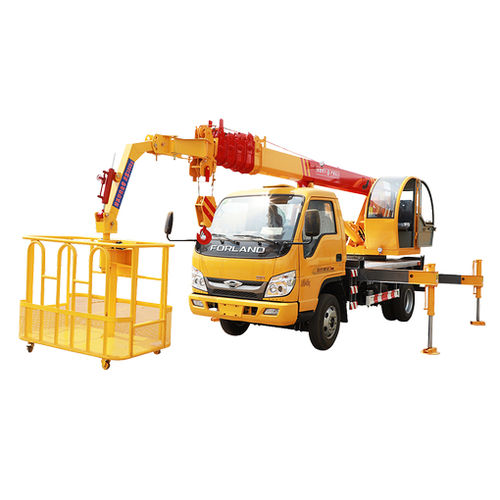

Truck-mounted crane HWFT5T

boomfor the automotive industrylifting

Automobile crane is a type of crane mounted on the chassis of a regular or specially designed vehicle, with separate compartments for driving and crane operation. The chassis performance of an automobile crane is equivalent to that of a cargo vehicle with the same overall weight, meeting the technical requirements for road vehicles, and therefore can travel smoothly on various types of roads. This type of crane typically has two control rooms, one for operating the crane from above and another for controlling it from below. Stabilizing legs must be extended during operation to ensure stability. Steering mode - Steering wheel Brake mode - Air brake Heating system - Heating Maximum lifting capacity - 5000kg Boom - 5m*4sections Maximum lifting height - 18.5m Maximum load moment - 100kN.m Maximum elevation angle - 0-75° Slewing angle - 360° Slewing speed - 2.5 Hydraulic outrigger - Automatic Boom extension - Return pole rope Outrigger span (mm) - 4500
