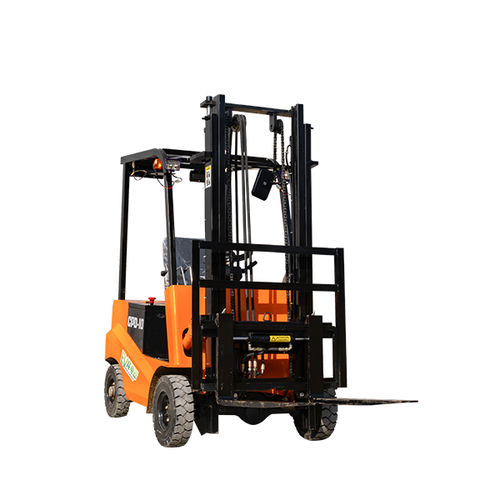

Battery-powered forklift HWC-1T

ride-onindustrialhandling

Forklifts are industrial handling vehicles designed for the loading, unloading, stacking, and short-distance transportation of unitized palletized goods. Referred to as industrial vehicles by the International Organization for Standardization (ISO/TC110), forklifts are commonly used for transporting large items in warehouses, employing either internal combustion engines or battery power. The technical parameters of a forklift are used to indicate its structural characteristics and operational performance. The key technical parameters include: rated load capacity, load center distance, maximum lifting height, mast tilt angle, maximum travel speed, minimum turning radius, minimum ground clearance, as well as wheelbase and track width. Battery weight - 5pieces Battery capacity - 220Type Voltage - 60V Charging voltage - 220V Charging time - 8hours Full charge working time - 4-6hours Maximum travel speed - 20-30Km/h Maximum lifting speed - 11m Full load maximum gradient - 20° Turning radius - 90° Overall dimensions - 2200*1200*2100 Front tire model - 500-10 solid Rear tire model - 400-8 solid Fork length - 1070㎜ Travel motor - 2.5KW Lifting motor - 1.8KW Motor type - DC Optional services and configurations - Lifting; lateral movement; three-stage mast; central cylinder; dry battery; lithium battery; clamp; license plate
