Suitable for castings, forgings and other workpieces below 65Kg, with a maximum diagonal size ≤ 550mm and below 80℃;
The minimum external dimensions of the workpiece shall not be less than 40mm (the minimum dimensions of length, width, and height shall not be less than 40mm);
The processing capacity is ≤ 1.8 tons/drum and ≤ 0.7m3/drum;

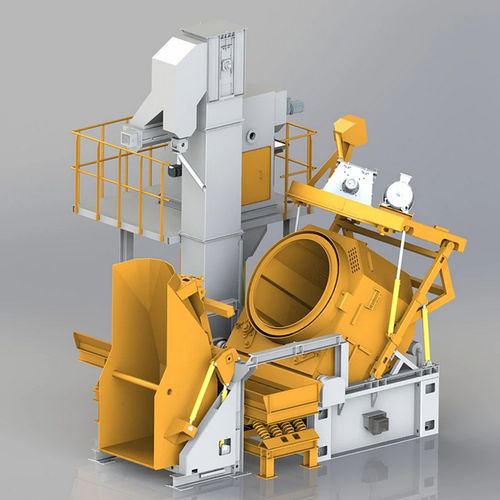

Equipment advantages
1. Adopting a double elevator to reduce the installation height;
2. Two stage magnetic separation ensures low wear and tear of wear-resistant parts when cleaning castings;
3. The feeding mechanism, door lifting, and drum flipping for loading and unloading are all driven by dual hydraulic cylinders, ensuring smooth operation;
4. The hydraulic system is equipped with a diversion valve and a balance valve to regulate the pressure of each branch of the pipeline and ensure smoother operation;
5. Equipped with a detection device to monitor the real-time operation of the drum;
6. The thickness of the drum has increased to 12mm from 10mm, resulting in a longer service life;
7. The sand leakage hole plate of the drum is detachable, and the operation and maintenance cost of the drum is lower;
8. The platform and silo are located on one side of the chamber, making it convenient for drum maintenance and replacement.
