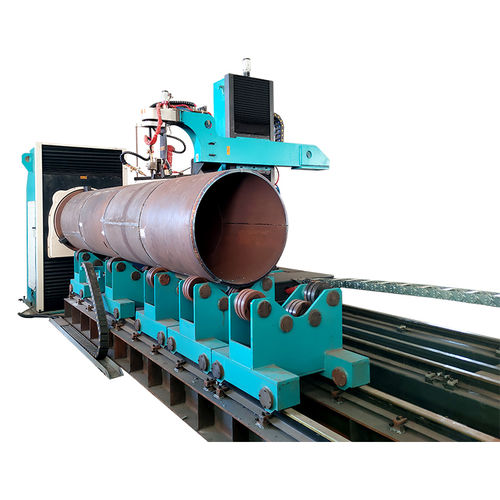

ROLLER BED TYPE
5 AXIS
PIPE CUTTING MACHINE KR-XY5
Pipe cutting machine
MECHANICAL STRUCTURE DESIGN ADVANTAGES
Main details display
CUTTING ARM
the preheating and flame cutting gun run synchronously, and the preheating follower torch is always perpendicular to the pipe, which plays the role of preheating the
CHUCK
Adopt the way that the pipe does not move the chuck to float, so as to improve the cutting quality of large pipe diameter
24KG RAIL
The top surface and two side surfaces are precisely processed by a CNC grinder using 24KG grade 55Q ground rails to ensure the level and parallelism of the moving torch trolley, improve the stability of the whole machine and the accuracy of the cutting axis
ADVANCED SYSTEM NE
It uses Pro-face's GP-2301HL handheld graphical operation interface. It has world-class security Protection function: 3-position enable switch, 3-contact emergency stop switch, alarm function
