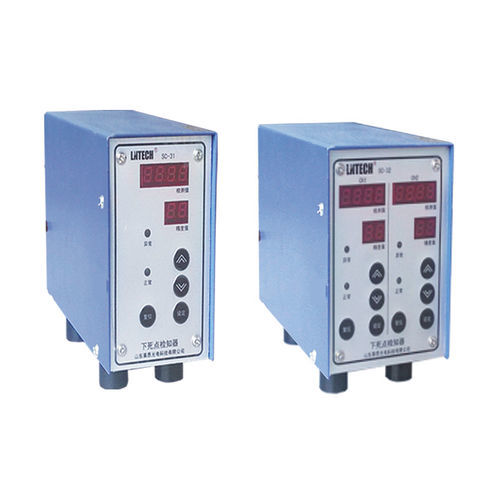

It is applying for precision ironware stamping process (precision terminals), for product crushed,laminated material and so on in the process of high speed automatic stamping which is hard to detect, effectively protect molds and improve the quality and product details It is applying for precision ironware stamping process (precision terminals), for product crushed,laminated material and so on in the process of high speed automatic stamping which is hard to detect, effectively protect molds and improve the quality and productivity. 1st rebound and B.D.C monitoring function(option) Replaceable sensors Automated monitoring material closing to without sync input Periodic monitoring is up to 2500SPM Can test the sensor’s cable broken Measurement type - eddy-current loss type Displacement - ±99.5um 2 digits LED indication Monitoring value - 99.5um 2 digits LED indication Monitoring accuracy - 0.5um Punch strock - 9mm Output - relay contacts output(N/O,N/C) 250V 2A Input - Reset,Muting Faults treatment - faults light on,stop signal output,response time <12ms Ambient temp. - –10~+50℃ Sensor distance - 1.2±0.4mm Max.SPM - 2500SPM Power supply - AC100V~230V 50/60HZ Size - SC-31: 180(L)×70(W)×110(H)mm, SC-32: 180(L)×88(W)×110(H)mm
