Liquids separator ZJC series
coalmagneticsurface

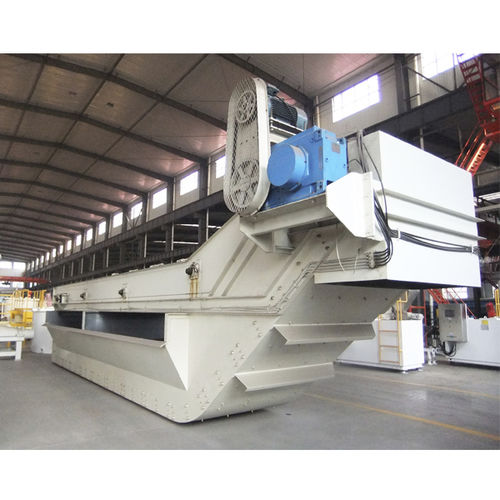

Liquids separator - ZJC series - Shandong Mining Machinery Group Company - coal / magnetic / surface

Liquids separator - ZJC series - Shandong Mining Machinery Group Company - coal / magnetic / surface - image - 2

Liquids separator - ZJC series - Shandong Mining Machinery Group Company - coal / magnetic / surface - image - 3

Add to favorites

Compare this product

Characteristics

Separated substance

liquids, coal

Technology

magnetic

Other characteristics

surface

Flow

Min.: 200 m³/h
(7,062.933 ft³/h)

Max.: 800 m³/h
(28,251.733 ft³/h)

Width

1,372 mm, 1,524 mm
(54 in, 60 in)

Weight

Min.: 10,250 kg
(22,597.38 lb)

Max.: 74,662 kg
(164,601.53 lb)

Description

a main body welded with steel plates, and a box bottom and rails protected with high-strength, wear-resistant material. Its sprocket wheelsare manufactured with high-strength materials which have been quenched, tempered and surface carburized improving strength and service life. It has a flexibly adjustable feeder, in order to achieve the best separation effect.The discharge device can be installed according to the user's needs to increase the speed of coal discharge and reduce the circulation of medium liquid. Its advanced variable-frequency speed-regulating device can adjust the speed of scraper chain according to the production needs.The scraper chain uses a hydraulic-tensioning device, which makes it easy to adjust the tension of scraper chain. A chain-breaking protection device is installed, and it also has a centralized lubrication mode to ensure the operation of the equipment.
