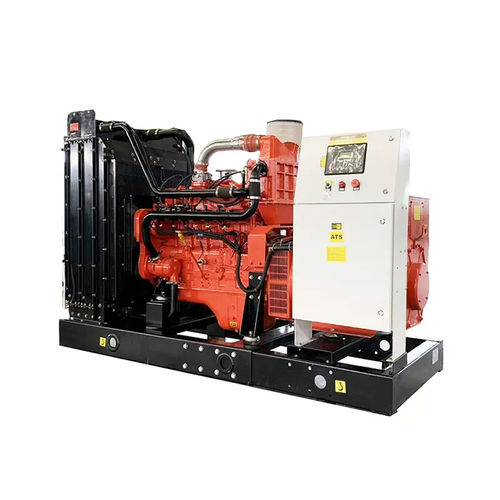

Natural gas generator set PL series
three-phasestationary50 Hz

natural gas generator set
natural gas generator set
Add to favorites
Compare this product


Characteristics

Motor type
natural gas
Phase
three-phase
Portability
stationary
Frequency
50 Hz, 60 Hz
Cooling system
water-cooled
Power in kVA

37 kVA
(50.31 hp)

Rated capacity

30 kW
(40.8 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Length

1,750 mm, 1,800 mm
(69 in, 71 in)

Width

740 mm, 900 mm
(29 in, 35 in)

Height

1,400 mm, 1,480 mm
(55 in, 58 in)

Weight

812 kg, 900 kg
(1,790.15 lb, 1,984.16 lb)

Description

Genset - Genset Model - PLC-30GF - PLR-30GF Rated Current ( A) - 45 - 45 Manufacturer - Pulita Energy Gas Engine - Main Engine-Body Make - Cummins - Ricardo Gas Engine Model - PCTA4L-NG - PR4105-NG Type - Four Stroke, Water Cooling, Spare Ignition, 24V DC Starting Displacement (L) - 3.9 - 4.15 Bore× Stock (mm) - 102*120 - 105*120 Air Intake Way - Turbocharged - Natural Fuel consumption(m³/Kw·h) - 0.3 Alternator - Brand/Model - Faraday - Faraday FD1J-4 - FD1J-4 Excitation Method - Self-excited, Brushless, AVR Phase/Connection - 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ) Protection Level/Insulation Class - IP23/H Control System - The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller. Options - Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options.
