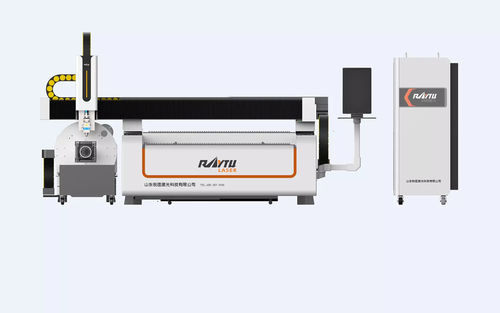

Fiber laser cutting machine RT-PT series
SSfor aluminumfor steel

fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
SS, for aluminum, for steel, for carbon steel, for copper, for brass, for iron, for titanium, for precious metals, for non-ferrous metals
Product handled
for thin sheet metal, for thick sheet metal, for metal sheets, for metal pipes, for slotted steel tubes, for aluminum profiles, for metal panels, for metal furniture, for metal fences
Control type
CNC
Associated function
engraving, marking, drilling, contour, multi-function, hole punch, slitting machine, labeling, with identification
Applications
for industrial applications, for metal fabrication, for the automotive industry, for aeronautical applications, for processing industry, metallographic, for construction machinery, for industrial vehicles, for shipbuilding
Workpiece loading
manual loading
Phase
three-phase
Configuration
gantry type, flatbed, 3-axis
Other characteristics
with servo-motor, automatic, high-precision, high-speed, CE, metal profile, for pipe ends, high-efficiency, with water cooling, high-power, for thin materials, for PP pipes, for steel construction, mild steel, for structural steel, with exchange table, economical, for mass production, alloy steel, galvanized steel
X travel

3,000 mm, 4,000 mm, 6,000 mm
(118 in, 157 in, 236 in)

Y travel

1,500 mm, 2,000 mm
(59 in, 79 in)

Tube diameter

110 mm, 160 mm, 220 mm
(4 in, 6 in, 9 in)

Cutting speed

80,000 mm/min, 120,000 mm/min
(52.493 in/s, 78.74 in/s)

Laser power

Min.: 1,000 W

Max.: 12,000 W

Repeatability

0.01 mm
(0.0004 in)

Acceleration

8 m/s², 16 m/s²
(26 ft/s², 52 ft/s²)

Description

Raytu PT-Series is open type exchange table fiber laser cutting machine designed for cutting both metal sheet and metal tube. PT series features for exchange table, independent pipe cutter module, super-fast platform change in 10 seconds, intelligent centralized control system and intelligent automatic lubrication system. Super-fast platform change in 10 seconds Super fast platform exchange in 10 seconds. Equipped with hexagonal steel wheels and powerful pneumatic tightening, the built-in wheels move smoothly. A complete table exchange can be done in 10 seconds. Intelligent control system for sheet and tube cutting - CYPCUT A suite of programs specially designed to deeply customize for both sheet and tube laser cutting. It is easy to use, rich in features, and suitable for a variety of processing situations. CYPCUT software for cutting sheets and various types of pipes. By collecting and processing various information in real time, high-precision cutting and more efficient processing can be achieved. Equipped with two pneumatic chucks Double-sided pneumatic chuck, automatic pipe centering, extended transmission design, improved stable performance, larger jaws and material saving. Intelligent zone smoke exhaust system The zonal smoke exhaust system consists of the sectional design of the cutting table and built-in ventilation ducts. Each section has pneumatic exhaust vents, slag collection funnels and pull-out trays for waste disposal. Waste generated during the cutting process falls between the table lamellas into funnels and settles in sliding trays for collecting slag.
