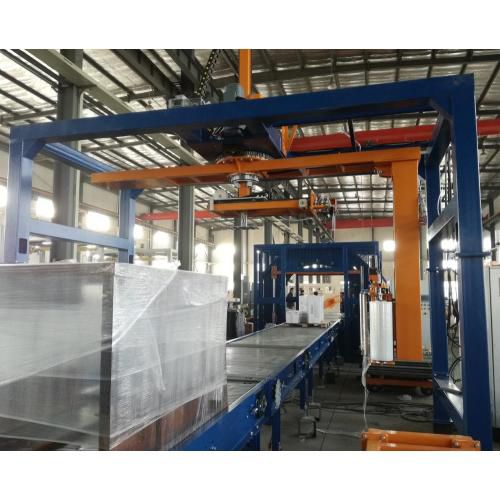

Automatic Ring Wrapping Machine finishes pallet wrapping with film carriage rotating around pallet. Feeding the film. wrapping, packaging according to the setting procedure, until the wrapping package ends, automatically cutting the film.
Pallet plus products specifications
Weight：Max. 2000kgs (Or based on customer requirements)
The height of the conveyor：500mm
Conveying speed:18m/ min
Front and behind conveyor models：Roller Conveyor line
Packaging speed：60-80 pallets/hour
Motor frequency control with brake.
Power: subject to actual design
Rotary ring drive speed: n=40rpm (frequency control, with brake)
Rotary ring guide direction device
Film carriage parts
Install a height sensor on the film carriage to automatically detect the height of the cargoAC motor drive system
The film carriage stretch ratio is 1:2.5 (250%), and the film feed speed is adjustable.
Film carriage follower mechanism
The feeding film dance arm of the film carriage rotating, and the proximity switch controls the start and stop of the film feed motor to achieve the follow-up of the film feed.
After the wrapping is completed, automatically cutting the film and hold the film tail
When the film clamp releases the film head, the cutting & feeding film device automatically blows the film head and wraps it into the pallet to ensure that no film tail is left.
The cut film adopt the heated and blown
After the film is automatically cut, the cutting % feeding device automatically welds the film tail to ensure that no film tail is left.
