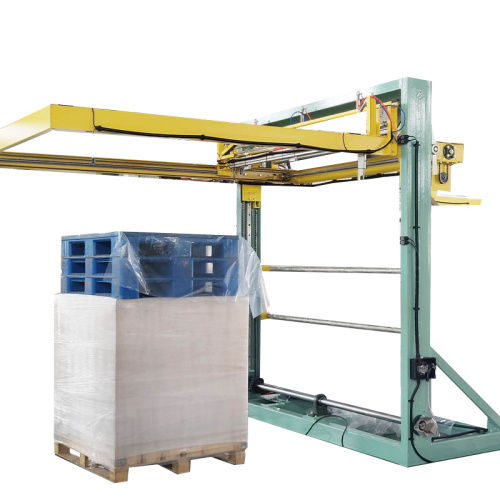

Wrapping machine with top cover sheet dispenser T1800FZ-PL

rotary armautomaticfor the food and beverage industry

Automatic Pallet Wrapping Machine--T1800FZ-PL full automatic Pre-Stretch Wrapping Machine --Professional film packing machine. This packaging machine has been used in various packaging areas widely. Pallet packaging machine is used to wrap stretch film around a loaded pallet. Stretch Film provides protection while the products are being transported& stored. Stretch wrapper is widely used in chemical industry, electronic industry, home appliances, foodstuff etc. • Galvanized roller diameter: 2000mm • Roller dia.: 76mm • Distance between rollers: 119mm • Slew bearing driven, motor: SEW • Film carriage lifting driving: chain driving, good stability and high reliability • Driving reducer: worm gear reducer • Open-door type film carriage • Motor brand: Chinese brand; • When stretch wrapping finish, the film will be cut and clamped automatically. • When the film tail is released from the clamp, the air shooter will blow the film tail up, then the film tail will be wrapped by stretch film and keep it tightly with the pallet to ensure no film tail produced. • Film hot melt cutting adopts electrical heating wire to cut the film. • After film being cut, the brush go onto the film tail to make it smooth. • PLC control system • Cut film automatically after wrapping finished • Film tension control adjustable • Carriage up/down speed adjustable • Safety tower light alarm
