Inverter duty motor YVF2 Series
inductionthree-phase400 V

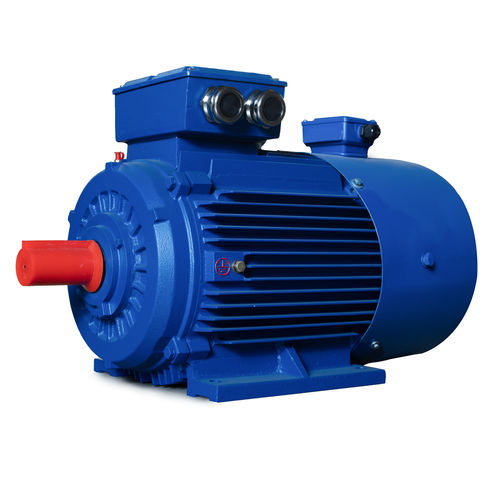

Inverter duty motor - YVF2 Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 400 V
Inverter duty motor - YVF2 Series - Shandong Sunvim Motor Co., Ltd. - induction / three-phase / 400 V
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
400 V
Configuration
squirrel-cage rotor
Protection class
IP55
Number of poles
4-pole, 6-pole, 8-pole
Cooling mechanism
IC411, air-cooled, self-ventilated, forced-ventilated, IC416, IC410, IC418
Applications
for industrial applications, for machine tools, for the chemical industry, for cranes, for the textile industry
Other characteristics
high-efficiency, low-noise, low-vibration, high-precision, variable-frequency, closed-loop, inverter duty
Power

Min.: 0.55 kW
(0.75 hp)

Max.: 315 kW
(428.28 hp)

Intensity

Min.: 2.3 A

Max.: 558 A

Torque

Min.: 7.5 Nm
(5.531716 ft.lb)

Max.: 2,565 Nm
(1,891.846913 ft.lb)

Rotational speed

Min.: 715 rpm
(4,492.4775 rad.min-1)

Max.: 1,490 rpm
(9,361.9461 rad.min-1)

Operating temperature

Min.: -15 °C
(5 °F)

Max.: 40 °C
(104 °F)

Description

YVF2 series motors use squirrel-cage construction for reliable operation and easy maintenance. This series motors have a good cooling effect at any speed with separated axial-flow ventilator. This series motors can save energy and can be automatic controlled, driven by variable frequency inverters. If fitted with highly accurate sensors, this series motors can achieve highly accurate operation of closed loop. YVF2 series motors are suitable for various operation systems by which speed-regulation is needed, so they have wide applications in many industries, such as light industry, textile, chemistry, metallurgy, crane, machine tool and so on. YVF2 series motors use squirrel-cage rotor structure， equipped with a separated axial-flow ventilator to ensure a good cooling effect at different speed.

Catalogs

YVF2
YVF2
10 Pages
