Diesel forklift CPC series
ride-onloading4-wheel

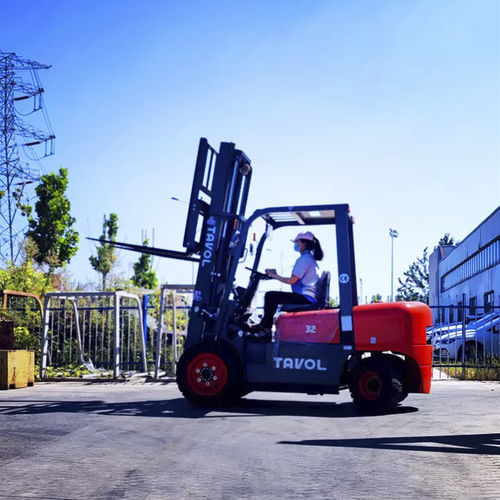

Diesel forklift - CPC series - Shandong Tavol Machinery Co.,Ltd - ride-on / loading / 4-wheel
Diesel forklift - CPC series - Shandong Tavol Machinery Co.,Ltd - ride-on / loading / 4-wheel
Diesel forklift - CPC series - Shandong Tavol Machinery Co.,Ltd - ride-on / loading / 4-wheel - image - 2
Diesel forklift - CPC series - Shandong Tavol Machinery Co.,Ltd - ride-on / loading / 4-wheel - image - 3
Diesel forklift - CPC series - Shandong Tavol Machinery Co.,Ltd - ride-on / loading / 4-wheel - image - 4
Diesel forklift - CPC series - Shandong Tavol Machinery Co.,Ltd - ride-on / loading / 4-wheel - image - 5
Diesel forklift - CPC series - Shandong Tavol Machinery Co.,Ltd - ride-on / loading / 4-wheel - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Operator
ride-on
Applications
loading
Other characteristics
4-wheel
Carrying capacity

2,000 kg, 2,500 kg, 3,200 kg, 3,600 kg
(4,409.2 lb, 5,511.6 lb, 7,054.8 lb, 7,936.6 lb)

Lifting height

3,000 mm
(118.11 in)

Load center distance

500 mm
(19.7 in)

Track width front

970 mm, 1,000 mm
(38.2 in, 39.4 in)

Track width rear

970 mm
(38.2 in)

Height to top of overhead guard

2,095 mm, 2,105 mm
(82.5 in, 82.9 in)

Turning circle radius

2,450 mm, 2,530 mm, 2,540 mm
(96.5 in, 99.6 in, 100 in)

Travel speed

17 km/h, 18 km/h, 19 km/h, 20 km/h
(10.6 mph, 11.2 mph, 11.8 mph, 12.4 mph)

Lifting speed

6.6 mm/min, 7.5 mm/min, 7.9 mm/min
(0.004 in/s, 0.005 in/s, 0.005 in/s)

Rated output

36.8 kW
(50 hp)

Rated speed

Min.: 1,700 rpm
(10,681.4 rad.min-1)

Max.: 1,900 rpm
(11,938.1 rad.min-1)

Description

Tavol diesel forklift has more than 20 years production and export experience, loading capacity from 1ton to 7 ton,lifting height from 3 meters to 6 meters,the mast can be two stages ,three stages and container mast.Our standard engine is Chinese Xinchai brand,Japanese Isuzu brand,Mitsubishi brand and Yanmar brand can also can be chosen.We can do hydraulic transmission and mechanical transmission to meet your needs. Our diesel forklift with fast delivery time(5-7 working days),accept OEM and ODM service.For more details ,welcome to contact with us. Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you. Anti-Fatigue Seat. New suspension adjustable seat,More comfortable when working Hydraulic Steering Make the steering smoother and quicker to ensure the safety of the driver Compound Chain Strong pull and easy lifting,thincking to prevent safety accidents Famous Brand Engine powerful, dependable, easy to service ,and with low emissions and fuel consumption Safe Overhead Guard Protect the driver Wear-resistant tire Adapt different roads and working environment. LED Light Save electricity, longer service life. Electric Switch Convenient to turn the lights on and off Instrument Board See driving data clearly
