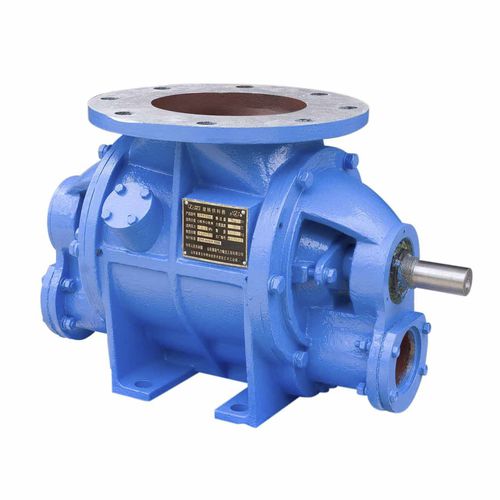

Pneumatic conveying rotary valve SRV

powderround-flange

Character: 1.The upper inlet is round standard flange. 2.Have the perforation structure that feed-in from upside. Enter wind and discharge from cover side. 3.Driving device is geared motor directly connected, simple and compact structure. 4.Connect to the conveying pipe directly, saving the installation height. Specification: Operation Pressure(△P)：-0.08~ +1.0MPa . Rotor Volume：1.7L/r~139.4L/r. Bore Size：DN125~DN500 . Application: For conveying or discharge the powder material or granular material in diverse industries.
