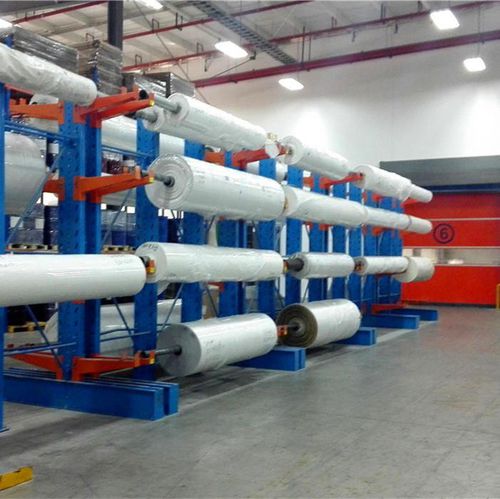

Cantilever rack system
for long itemsfor heavy loadsfor pipes

cantilever rack system
cantilever rack system
cantilever rack system
cantilever rack system
cantilever rack system
Add to favorites
Compare this product


for long items, for heavy loads
for pipes, cable


1. Product Introduction: Industrial Cantilever Racking is mainly suitable for long type goods or irregular size articles, such as wood, pipe, profile, cable and so on. The cantilever racking is one of the ideal solutions for these heavy, unmanaged special items. Industrial Cantilever Racking can solve the storage of long material and irregular shaped material. The highest column can reach 10 meters, cantilever arm length is 1.0 – 1.2m, and loading capacity can reach 1 ton. Heavy Duty Cantilever Racking System can be used in indoor and outdoor. It can be used hot dip galvanized to surface treatment of outdoor. It also can be installed ceiling at the top of the column, then can be resisted wind, rain and sunshine. 2. Cantilever Racking Components Cantilever Racking is divided into single and double cantilever racks. And it is composed of the main part and accessories. Cantilever Arm Cantilever arms are the heart of the rack system. Arms can be adjusted easily up and down the column and are available in length with a variety of capacities from 1,500 kgs. The arm of a cantilever racking can be either a single side or a double side. Arm can be welded to different positions on the connector according to customized load requirement. Straight, standard and inclined arms are available. The goods of Heavy Duty Cantilever Racking System are usually accessed by a forklift or artificially. Heavy Duty Cantilever Racking System are mostly used in the machinery manufacturing industry, building materials supermarket, cable power, production factory, and various industrial warehouses.
