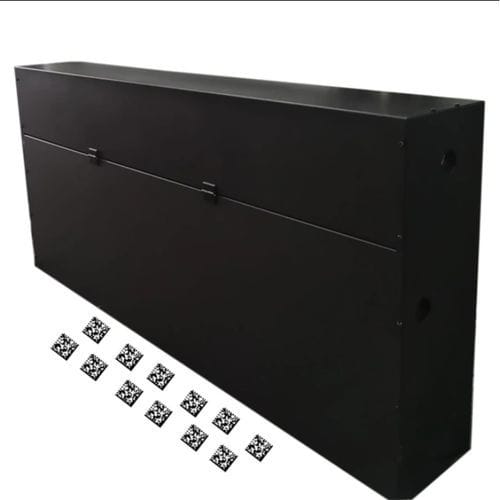

Piezo inkjet printing machine KY108

for packagingcolorautomatic

1. System Overview 1.1 Core Components Print engine: Kyocera KJ4A-RH piezoelectric printheads (4-row configuration) Control system: Industrial PC with real-time Linux OS Software architecture: Custom-developed RIP engine with adaptive waveform control 1.2 Key Technological Advantages Precision mechanics: ±0.1mm head alignment accuracy Dynamic calibration: Auto-registration system with 5μm resolution Multi-head synchronization: <50ns timing variance between heads 2. Printhead Specifications 2.1 KJ4A-RH Performance Parameters Parameter Specification Native resolution360npi (90npi × 4 rows)Nozzle count1024 (256 × 4 rows) Drop volume range3-13pl (8 grayscale levels) Maximum firing frequency 45kHz Dot placement accuracy±5μm 2.2 Fluid System Characteristics Viscosity range: 3-15cP at 25°C Temperature control: 35±0.5°C maintained Ink filtration: 10μm → 5μm → 1μm cascade filtration
