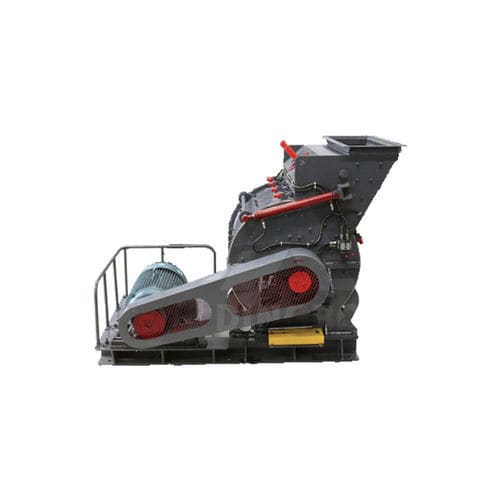

Hammer mill PC40 series
coarse powderhigh-speedlarge

hammer mill
hammer mill
Add to favorites
Compare this product


Characteristics

Technology
hammer
Product applications
coarse powder
Other characteristics
high-speed, large
Motor power

Min.: 55 kW
(74.78 hp)

Max.: 132 kW
(179.47 hp)

Description

Coarse Powder Mill engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries. Coarse Powder Hammer Mill engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries. Working principle of Coarse Powder Hammer Mill : Coarse Powder Mill mainly consists of frame, rotor, support iron and grate bars. The frame is divides into two parts: upper part and low part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of turnplates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and the thrown fiercely to the support iron for further crushing. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size.
