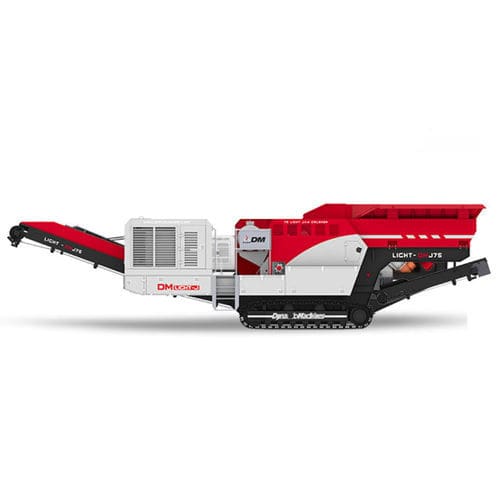

Jaw crusher DMJ75H

mobilecrawler

Product Overview
The DongMeng Tracked mobile light jaw crusher is equipped with the latest European style jaw crusher. This is an optimized design and manufacturing in terms of structure, material selection, technology, and assembly. The new type jaw crusher has the features of light weight, simple operation and large crushing ratio.

Key Specifications

• Feed Particle Size: ≤450mm
• Processing Capacity: 55-150t/h
• Machinery Weight: 25t

Product Parameters
Model: DMJ75H
Main Crusher Model / Power / Weight: DC75 / 75kw / 9.5t
Max. Feed Size: 450mm
Capacity: 55-150t/h
Feed and Discharge Height: 3050mm / 2800mm
Hopper Capacity: 3m³
Engine Power: 159kw
Main Belt Conveyor: B700 x 9m
Side Materials Belt Conveyor: B500 x 2.3m
Machine Size (L×W×H, m): Working state: 12.3x2.2x3.03m; Transport state: 10.8x2.2x3.03m
Weight (ton): 25t

Product Advantages

• Materials Feeding: Large-size standard hopper for fast feeding; vibrating grizzly feeder ensures stable, continuous and even feeding to the jaw crusher; pre-screening function improves the purity of the finished materials.
• Jaw Crusher: Hydraulic Closed Side Setting for convenient and quick adjustment; optimized cavity design for high capacity and large crushing ratio; powerful crusher drive ensures maximum crushing ability and high reliability.
• Side Conveyor: Vibrating grizzly feeder pre-screens fine materials to increase crusher efficiency and reduce dust ratio.

Caractéristiques / spécifications techniques

• Model: DMJ75H
• Main crusher model / power / weight: DC75 / 75kw / 9.5t
• Max. feed size: 450 mm
• Capacity: 55-150 t/h
• Feed particle size (stated): ≤450 mm
• Feed and discharge height: 3050 mm / 2800 mm
• Hopper capacity: 3 m³
• Engine power: 159 kW
• Main belt conveyor: B700 x 9 m
• Side materials belt conveyor: B500 x 2.3 m
• Machine size (L×W×H): Working: 12.3 x 2.2 x 3.03 m; Transport: 10.8 x 2.2 x 3.03 m
• Weight: 25 t
