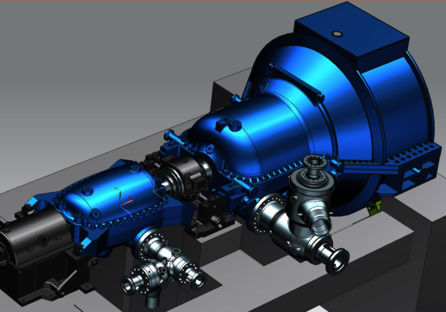

Gas turbine F Class CCPP

single-shaft

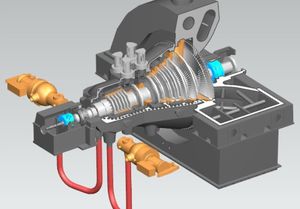

Ae94.3a gas turbine and QFSN-300-2 water hydrogen cooled gas turbine generator are selected to form the power equipment of gas turbine island in Shanghai Electric F class 1 on 1 multi-shaft combined cycle, HI + LD or HS + ILA double casing module steam turbine and QF-150-2 air cooled generator are selected to form the power equipment of steam turbine generator, and SGH-F triple-pressure reheat type HRSG is matched. AE94.3A gas turbine, HS + ILA double casing steam turbine and QFSN-500-2 water hydrogen cooled generator are selected as the power equipment of the turbine island for 1 on 1 single-shaft combined cycle, which is matched with SGH-F triple-pressure reheat type HRSG. CCPP output：~483MW CCPP efficiency：≥59.7% Steam extraction： Industiral（＜3.0MPa）：~250t/h District：~300t/h（NC）,~400t/h（NCB）
