Gas turbine E Class CCPP

for power generation

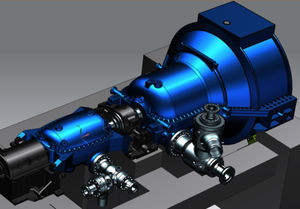

E Class CCPP（270MW Class） Shanghai Electric AE94.2 type gas turbine and QF-180-2 type air-cooled gas turbine generator are selected to form the power equipment of gas turbine island in the E-Class 1 on 1 multi-shaft combined cycle., IL single casing module or IS + LD double casing module steam turbine and QF-100-2 type air-cooled generator are selected to form the power equipment of steam turbine generator, and SGH-E double pressure non reheat HRSG is matched. ​ CCPP output：~270MW CCPP efficiency：≥53.1% Steam extraction： Industiral（＜4.0MPa）：~250t/h District：~200t/h（NC）,~300t/h（NCB）
