Tube packaging line

automatic

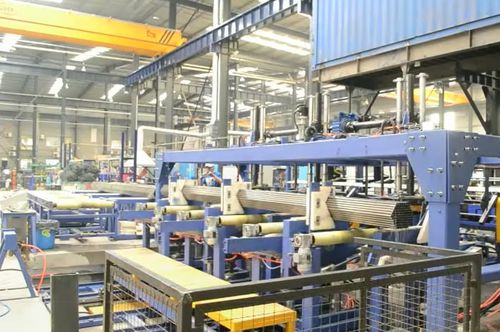

bundling and stacking packing line machine FHOPE Bundling Station handles and bundle making the pipe or hollow structural sections into bundles sized which designed according to the product size. The line is fully automated and controlled from a touch screen operator station. The Bundling machine builds the programmed configuration and fully contains the sides to maintain the shape until strapping is completed. Once completed, a lateral transfer system stages the bundles onto an unloading table for their final transfer. Run out roller conveyor, Rejection kicking,waster pipes collection system>>>> Tube Picking up &air blower piece by piece >>>>Tube aligning&counting&rectangular tube auto detected flipped 90 degrees >>>> Tube row layering >>>>>Tube pipe bundling>>>>>Shifting bundle to conveyor>>>>Tube bundle strapping(manual strap)>>>>>Bundling air blower >>>>>Auto bundles out-loading conveyor >>>>> 5 bundles chain stacking. 1)Electromagnetic chuck type row stacking layers bundling system. 2)The forming device is adjustable per different bundle shape. 3)The tube move to bundling position by pushing; 4)The tube stacking stopper pushes out; 5)Tube bundling stopper pushes out and clamps the tube row tightly; 6)Supporting forks reset; 7)The tube bundling stopper pushes out to protect the tube bundle well from loosening. 1 Loading, counting, aligning, tube-layer forming and forming mechanism Tube-layer is formed, This procedure consists of the following: loading, aligning, counting, tube-layer forming, tube-layer conveyed to bundle forming-bed, bundle forming-bed conveyed to bundle carrier, and so on. 2 Loading and aligning.
