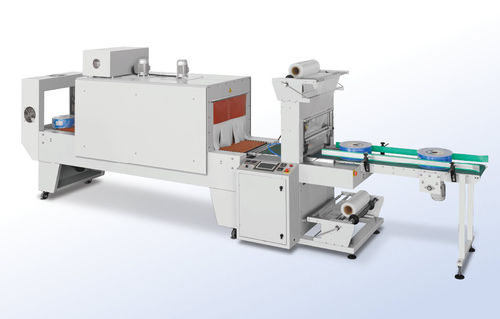

Automatic shrink wrapping machine SK-080B
cartonbeveragewith shrink tunnel

automatic shrink wrapping machine
automatic shrink wrapping machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Product applications
carton, beverage
Other characteristic
with shrink tunnel
Throughput

Max.: 18 p/min

Min.: 8 p/min

Width

600 mm
(23.6 in)

Description

Application: Spring water, beverage, bear with pallet or single carton package. Model: SK-080B Sealing type: sleeve sealing Power supply: 380V/50-60Hz/3phase Max product size: 420(L) x 350(W) x 300(H)mm Packing capacity: 8-18 packs per minute Film type: polyethylene (PE) film Max film size: 600(width) x 280mm (outer diameter) Power consumption: max. 20.5kw Tunnel oven size: entrance 600(W) x 400(H) mm Tunnel conveyor speed: variable, controlled by frequency converter Tunnel conveyor: chains with silicon coated rods Working height: 850-900mm Air pressure: ≤0.5MPa(5 bar) Sealing system: Durable“U”shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats Operating panel: Siemens colorful touch screen, PLC, omron temperature controller Machine material: carbon steel Weight: 1000kg
