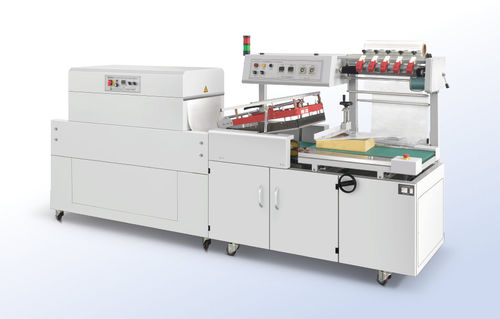

Fully-automatic shrink wrapping machine FP-400LA+SH-450C

with shrink tunnelwith sealing bar

FP-400LA+SH-450C is a fully automatic unmanned operation of the "L" type sealing and shrinking packing machine, widely used in mass production packaging line production, high efficiency, automatic film feeding guide of punch device and manual adjustment of membrane system, apply for different width and the height of the products, it also with sealing joint function, is specially designed for small products packing using, when the package size changes, don't need to change the mold and the bag making device. Feature： 1.Dupont teflon coating, adhesion, aluminum alloy knife with high temperature resistance. 2.With import inspection photoelectric, for thin and small goods, can also be easily sealing and packaging. 3.Automatic feeding system, Equipped with induction motor, automatic waste winding. 4.Well known brand “omron” digital display temperature controller, sealing temperature sensitive and accurate, can be setted. 5.Sealing knife with the automatic protection function, with the automatic alarm function, greatly enhances the operator's safety. 6.It is connected with the unmanned operation of the production line. Technical Specification: Sealing type: L-bar sealing Power supply: 380V/50-60Hz/3phase Packing capacity: 10-25 packs per minute (depends on product size) Sealing height: ≤125 mm Packing width: ≤350 mm Product size: width+height≤400 mm length+height≤480 mm Film type: center-folded polyolefin(POF)film Max film size: 530mm(width)x280mm(outer diameter) Power consumption: 1.5kW Working height: 780-850 mm Air pressure: ≤0.5MPa (5 bar) Sealing system: Special durable alloyed sealing knife with anti-stick Teflon coats Machine material: carbon steel
