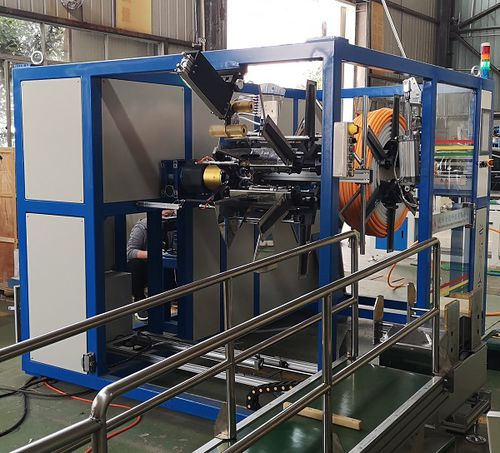

Automatic coiler FCL-Y800
for hoses

automatic coiler
automatic coiler
Add to favorites
Compare this product


Characteristics

Operation
automatic
Applications
for hoses

Description

Machine name:HDPE Pipe Automatic Coiler Diameter:20-32mm(Customization of other specifications) Application:HDPE, PERT, PEX, PE pipe coiling&strapping Operational environment: 1.Indoor 2.Temperature:-20/45℃ 3.Height above sea level:0-3000m 4.Power Supply:AC 220V(+10%,-10%) 50Hz TNS ground connection 5.Total Power:less than 3kW 6.Air supply: 0.5MPa 7.Air consumption:Less than 1.0 m3 / h Equipment description 1.Machine size:4500mm*2200mm*2100mm 2.Colour:Light blue (other colors can be customized) 3.Control:HMI+PLC+SERVO MOTOR+Encoder+Solenoid valve+Air cylinder 4.Installation:Provide turnkey coiling and strapping project. For more HDPE, PERT automatic coiler solution or factory visiting, please contact with my team.
