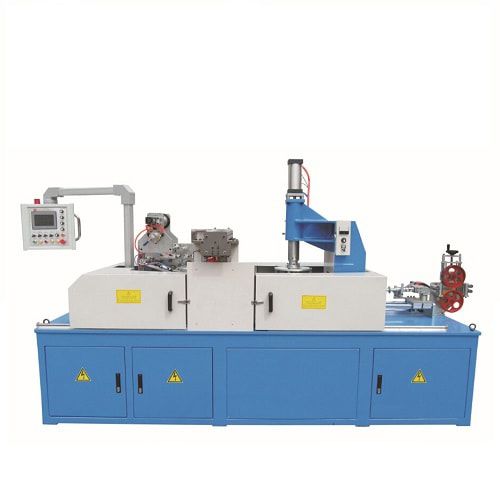

Tube winding machine FCL-200

automatic

Automatic Coiler machine FCL-200 is used for the packaging of off-line pipe.It can calculate tube length, automatic cutting, coil making, PP binding and automatic shrink film packaging.All of these comply with CE criterion and use the latest technology and design standards for industrial use. Function: It can calculate tube length, and automatically complete winding equipment such as cutting pipe, coil pipe, fixed pipe ring, strapping tape and automatic moving coil.It can be set in PLC control program. Product Specifications: No. of packing material LLDPE/PE/PVC/: Coil ID: 100-300mm Coil OD: 300-400mm Width: 200mm Weight :20-80kg Main wrapping speed(high/low) 18-35sec/pcs Max speed of ring 100r/Minute Power supply(high/low) 380V 60Hz 3P Features: 1. PLC control program. 2. The setting parameters can be used in the control program. 3. The OD of coiling is adjustable. 4. The cutting length of the tube can be adjusted. 5.Two protection devices are used to fix and move the helix. 6.Automatically detect wrong function and alarm when failure occurs. 7.Positioning pipe through sensor. 8.The compression device keeps the tube stable. 2) Automatic wrapping machine • power :AC380V,3-phase,50HZ, or provided by customer • operation direction: inlet wire from left, or provided by customer • wire reel size:outside diameter:200-600mm; inside diameter:180mm-250mm;height:40-140mm • wire reel weight:max.100kg • PVC/PE/PP film size:thickness:25 microm, width50-70mm • way of loading plastic film:pneumatic loading • electric loop control :adopt Mitsubishi micro-computer programme controller(PLC) • operation panel:Graphic operator Interface
