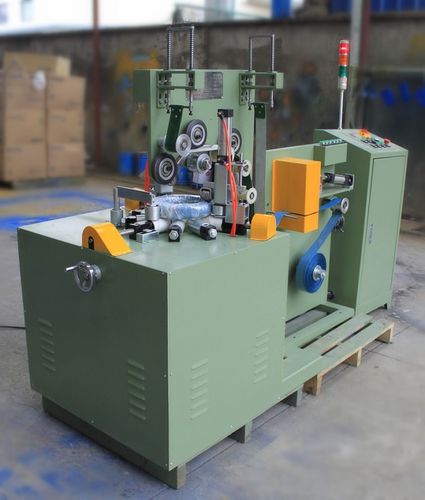

Horizontal wrapping machine FPB-300

rotary ringautomaticfor bearings

This bearing wrapping machine is designed mainly for wrapping the big size bearing and axletree packaging requirement. It's strenght can be shown on improving the packing quality and high packing speed for saving labor cost and packing cost. Features of bearing packing machine: Control: l 1. The machine can be connected with production line for automatic bearing wrapping. l 2. PLC & HMI are adopted for automatic operation. l 3. Automatic centralized positioning for bearing packaging l 4. Sensors have been adopted for checking position of the wrapping position. l 5. Automatic conveyors for loading and unloading. l 6. Manual and automatic bearing packing models are optional. l 7. Indicator alarms automatically when trouble occurs. Trouble can be shown automatically. l 8. Soft stop and start protection. l 9. Ring reset function. l 10. Ring jog. Operation for bearing packing machine: l1. The converters adopted to adjust the overlap of the packing tape according to requirement. l 2. Speed of the ring and rollers are adjustable by converters. l 3. Simple operation by imputing OD. ID. width & corrected parameter of coiled metal. Other parameters will be set automatically. l 4. Guardrails, soft starts and stop for safety operation. l 5. It can be connected with production line for automatic bearing packing. l 6. Packaging tension is adjustable. l 7. Special braker for the tape release device to avoid material folding. l 8. Automatic material cutting the feeding system. FPB-300 Voltage (V/Hz): AC 380/50( or your requirement) Power (KW): 2.5 Bearing ID(mm): 300-900 Bearing OD(mm): 700-1200 Bearing width(mm): 50-300 Bearing Weight(Kg): 100-500
