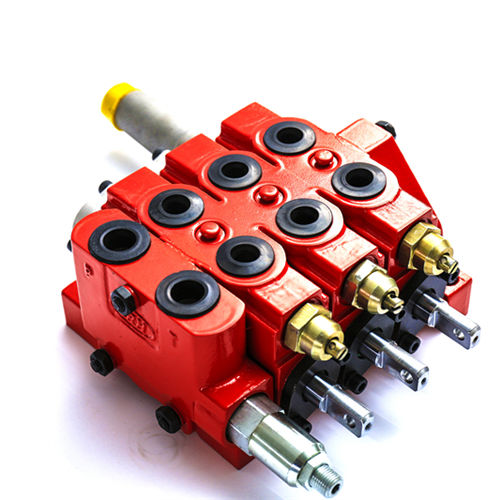

Spool hydraulic directional control valve GKV50

manualsectionalcast iron

GKV50 Sectional Directional Control Valves Features Valve body is made from grey cast iron (inlet module, work module, outlet module) Spring cap, mechanical detent cap and electrical or hydraulic pilot controlled module are made from cast aluminum or die-cast aluminum. Parallel circuit: each module feature a load check valve, optional inlet port overload valve, check valve or relief anti-cavitation valve. Series circuit is available. Optional control module: electric, hydraulic remote, manual and wire pulling. Available power beyond port. Can be modified to be a closed center. Optional mechanical positioning. Inlet module can equip a direct acting or pilot relief valve and the valve position is adjustable. Mechanical hydraulic lock is also available to adapt to the requirements from lifting mechanism of tractor and lifting machinery for locking heavy items. Different functions of spools are provided to control two-way cylinder, one-way cylinder, or spool for hydraulic motor. Valve spool with floating function is available. Valve features small operating force and good flow characteristics. Section numbers: 1-8.
