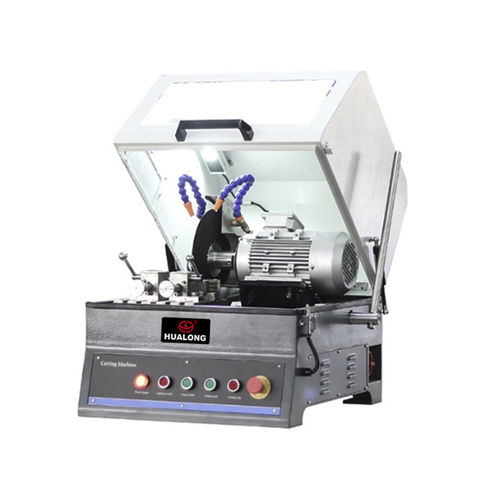

Metallographic cutting machine HLC-300T

rotary bladefor metalsample

-The machine adopts fully enclosed structure, sealing effect is good, safe and reliable;-The machine adopts fully enclosed structure, sealing effect is good, safe and reliable; -This machine adopts fast clamping device, clamping objects more quickly and accurately -Double air spring device, balance the weight of the upper cover shell, open and close the upper cover shell effortlessly; -Special cooling water tank for circulating coolant; -Jaws and work table and other main parts are made of stainless materials, long service life; -Large cutting range and transmission power; -Smooth rotation, low noise. Maximum cut diameter Φ 85 mm Cutting disc 300 * 2 * 32 mm Spindle speed 2800r/min Motor 2.2 KW 380 v, 50 hz Emergency brake Emergency stop switch Cutting room lighting Low voltage dc lighting Cutting platform size 210*208mm Clamp device Standard fast fixture Cooling device External circulating filter tank 40L, multi-group adjustable water spray device and cleaning water gun Cutting mode Manually chopping Observation window Explosion-proof transparent engineering plastics Overall dimensions 680*670*640mm Weight 160Kg
