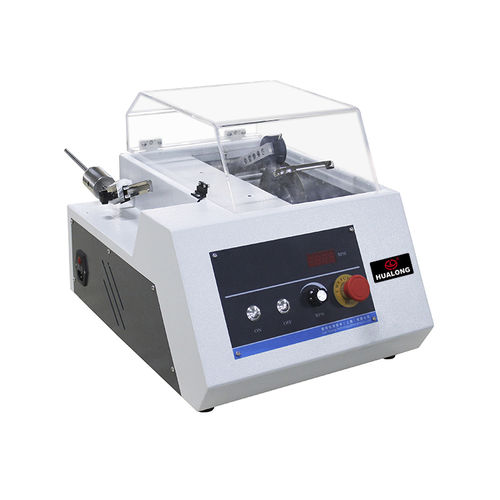

Metallographic cut-off machine HLC150rotary bladefor metalsample
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- sample
- Applications
- metallographic
- Other characteristics
- with water cooling
- Overall length
520 mm
(20 in)- Overall width
430 mm
(17 in)- Height
390 mm
(15 in)- Weight
33 kg
(72.75 lb)
Description
- Closed transparent protective cover, safety switch for the operator to provide protection, easy to observe.
- Through the gravity loading system, the feed rate of the processed object is fine-tuned to minimize sample damage
- Closed - loop control cutting to prevent overload burning motor, circuit, etc.
Cutting disc
Standard diamond cutting blade 150x12.7x0.43mm (6inch)
Cutting positioning accuracy
0.01 mm
Built-in cooling unit
Automatic circulating cooling of cutting fluid (cutting disc drives water circulating cooling of flume)
Brushless DC motor
Power: 550W Speed: 0-1650r/min
Display
LED digital display
Emergency brake
Emergency stop switch
Power supply
AC220V 50HZ
Overall dimensions
520 x 430 x 390 mm
Weight
33kg
