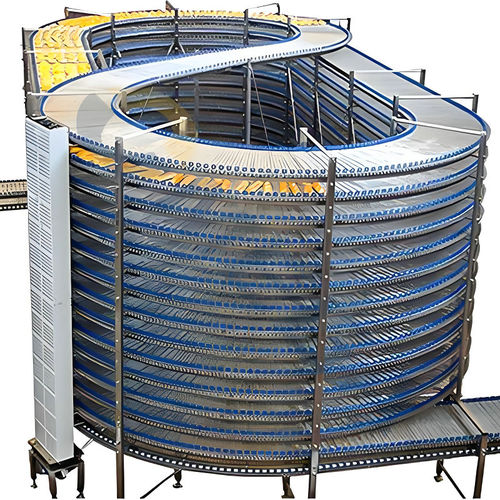

Spiral cooling tower

for the food industry

Features Natural cooling / uniform freezing; Stainless steel material, stable structure; Optional conveying belt: stainless steel 201 / 304 mesh belt, PP / POM food grade plastic belt; Optional entrance / exit direction, flexible matching; Easy cleaning, high hygiene and health standards; Multi-functional and highly efficient, long time in use. Application Bread, pizza, cake, bisciut, hambguer, dumpling, buns, waffle, dough, pastry, etc Technical Info Tower Diameter: 1.5 – 12 meter / Customized Tower height: 3 – 6 meter / Customized Tower layer: 1 – 40 layer (layer spacing and number of layers depending on production capacity) Belt material: stainless steel 201 / 304 mesh belt, PP / POM food grade plastic belt Belt width: 200 -1300 mm Belt length: 50 – 1200 meter Freezing / cooling time: 20-120 min / adjustable Tower type: single spiral cooling tower, double spiral cooling tower Entrance / exit direction: low inlet & high outlet, high inlet & low outlet, two inlet & two outlet, three inlet & three outlet, etc Power supply: 220V/380V 50/60Hz / Customized
