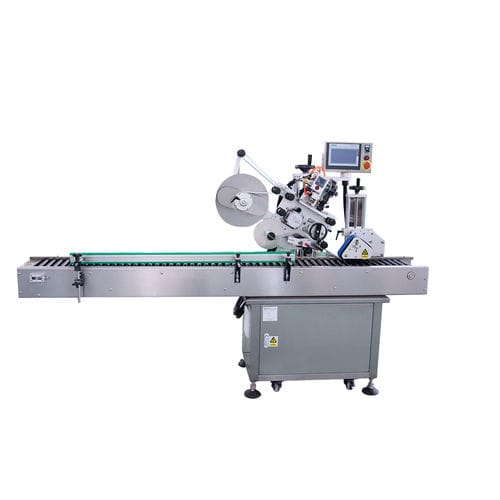

Horizontal labeling machine NP-HLautomaticfor bottlesfor tubes
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Product application
- for bottles, for tubes, carton, bag, syringe
- Label positioning
- side, top
- Applications
- for the food industry, for the pharmaceutical industry, for the beverage industry, for the cosmetics industry, for the wine industry, for the chemical industry, for label print and apply application
- Type
- for self-adhesive labels
- Other characteristics
- horizontal
- Throughput
Min.: 0 p/min
Max.: 300 p/min
- Power
0.8 kW
(1.09 hp)
Description
The NP-HL is base on the NP-RL , it is high speed labeling machine, max labeling speed can reach 300bottles/min,It is suitable for a range of cartons in the range of label size
The machine is adapt advanced technology in the world.
Features:
Touch screen and PLC control
Around 30 memory recipes for labeling parameters easy for change bottle size.
Low or missing label detect.
Synchronized speed selection
Servo motor drive for high accuracy and high speed
No bottle no labeling.
Technical Parameters:
Machine Size - 2000（L）×1000（W）×1600（H）mm
Output Speed - 100-200pcs/min
Height Label Object - 25-95 mm
bottle diameter - 10-24mm
Label Height - 20-90mm
Label Length - 25-80mm
Precision - ±0.5mm
Roll inside - 76mm
Roll Outside Diameter - 380mm
Power Supply - 220V 1.5kw 50/60HZ
Coding Machine air consumption - 5Kg/c㎡
