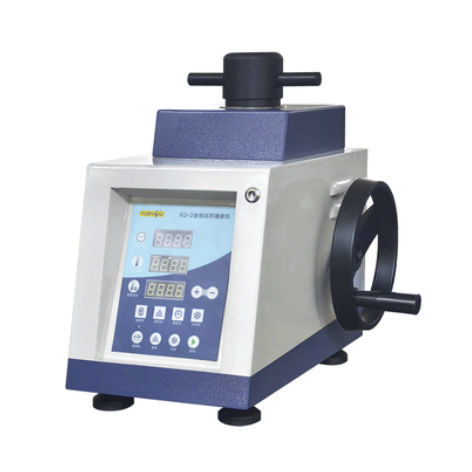

Metallographic sample mounting press XQ-2

hotautomaticlaboratory

Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. XQ-2 metallographic sample mounting press is improved on the basis of the classic model XQ-1. With long mould and high heating power, it has high efficiency. The mould cover adopts the rotating thread structure, which is convenient and safe to open the cover. The integrated control interface has real-time display of total mounting time and temperature and visualization of mounting state, which makes the operation more humane. With water cooling system, it makes sample preparation fast. It has stable and reliable performance and easy operation, which is the economic choice for sample mounting. (Only for thermosetting materials, such as Bakelite powder, Urea formaldehyde molding powder etc.) Cavity Height 115mm, effective 60mm Heating Power 800W Heating Temperature 0~200℃ Cooling Method External water source cooling Power Supply 220V, 50Hz，6A Dimensions 420×380×430mm Net Weight 40kg
