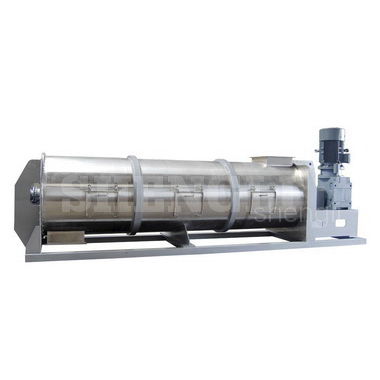

Paddle mixer CM series

ploughcontinuousgranules

Introduction: Cm-series continuous mixer can achieve feeding and discharging simultaneously. It is normally matched in the large scale production line, on the basis of mixing material evenly, it can ensure the consistency and stability of all the product. Total volume: 0.3-30cbm Capacity per hour: 5-200cbm Motor power: 3kw-200kw Material: 316L, 304, mild steel The CMS (Continuous single shaft plough mixer), focus on mixing, it can also convey the material. With the special inner structure, it can adapt to a certain range of the feeding speed, to achieve relevant productivity. With the uniform speed feeding equipment, it can mix material in a wide range, and make sure the consistency and stability of all the product. CMD ( continuous double shaft paddle mixer) is characterized by maximizing the productivity. Materials are scattered during the vigorous mixing process, diffused and nobbed between the meshing space of the twin shafts. It can be applied to mix fiber and granules.
