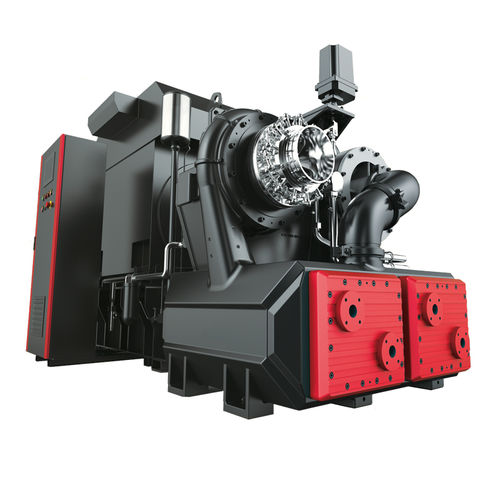

Centrifugal compressor SLT seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Application domain
- industrial, for food applications
- Applications
- for refrigeration technology, for air conditioning, for blowers
- Other characteristics
- compact, impeller
- Pressure
Min.: 0.6 bar
(8.7 psi)Max.: 30 bar
(435.11 psi)- Flow
Min.: 24 m³/min
(847.55 ft³/min)Max.: 3,000 m³/min
(105,944 ft³/min)- Power
Min.: 132 kW
(179.47 hp)Max.: 15,130 kW
(20,571.07 hp)- Length
Min.: 2,750 mm
(108.27 in)Max.: 15,000 mm
(590.55 in)- Width
Min.: 1,500 mm
(59.06 in)Max.: 6,200 mm
(244.09 in)- Height
Min.: 1,820 mm
(71.65 in)Max.: 6,000 mm
(236.22 in)- Weight
Min.: 3,800 kg
(8,377.6 lb)Max.: 80,000 kg
(176,369.8 lb)
Description
A centrifugal compressor is a compressor in which the impeller does work on the gas to increase the pressure and speed of the gas and complete the gas transportation. The gas flows through the impeller in the radial direction. The centrifugal air compressor has a large air volume, simple and compact structure, lightweight. The operation is balanced, the operation rate is high, the friction parts are few, the maintenance cost and the personnel are few.
Moreover, turbo air compressor are widely used. Some basic chemical materials, such as propylene and ethylene, can be processed into important chemical products such as plastics and rubber. In the production of this basic raw material, the centrifugal compressor is one of the key pieces of equipment.
