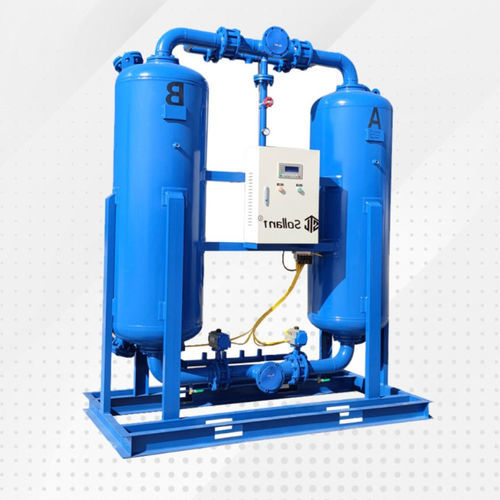

The micro-heat régénération adsorption dryer is based on the heatless suction dryer, and a heater is added to increase the temperature of the régénération airflow, increase the capacity of the régénération airflow to water vapor, and increase the temperature of the adsorbent
to make the surface of the adsorbent Increased activity and easier régénération
Through the above two aspects, w+iile improving the régénération effect, the régénération air consumption can be reduced, so as to achieve the purpose of saving oompressed air and energy.
Select high-efficiency wear-resistant adsorbent, which not only has large specific surface area and strong adsorption capacity, but also has very good wear resistance, ensuring stable dew point for long-term use and not easy to pulverize
Standard frame, prefabricated forklift holes and lifting rings, convenient for handling and hoisting operations
High-performance butterfly valve, stainless steel valve plate, high-efficiency pneumatic actuator to ensure longer service life
PLC control text display, sensor monitoring, visualization of equipment operation, stable and reliable, and remote monitoring and remote dry contact control
Stainless steel heater, with temperature control, has the advantages of fast heating speed, safety and stability, etc.
Stainless steel flow distributor to ensure even flow diffusion, reliable and durable
The heatless régénération adsorption dryer uses the pressure swing adsorption prindple of the adsorbent to carry out adsorption under high water vapor partial pressure and regenerate under low water vapor partial pressure. The régénération barrel uses part of the product
gas at the outlet,
