220 V servomotor S series
smallIP65protection level

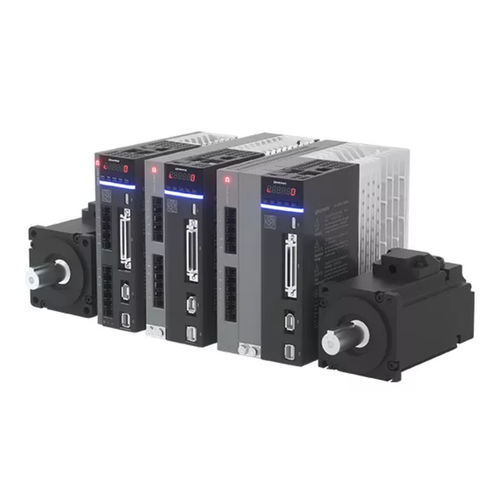

220 V servomotor - S series - SHANGHAI STEP ELECTRIC CORPORATION - small / IP65 / protection level
220 V servomotor - S series - SHANGHAI STEP ELECTRIC CORPORATION - small / IP65 / protection level
220 V servomotor - S series - SHANGHAI STEP ELECTRIC CORPORATION - small / IP65 / protection level - image - 2
220 V servomotor - S series - SHANGHAI STEP ELECTRIC CORPORATION - small / IP65 / protection level - image - 3
Add to favorites
Compare this product

Characteristics

Voltage
220 V
Configuration
small
Protection class
IP65, protection level
Number of poles
10-pole
Applications
for robotics, packaging machine, for the textile industry, for the electronics industry, for grinding machines
Other characteristics
high-precision, high-speed, high-efficiency, low-noise, high-power
Power

Min.: 0.2 kW
(0.27 hp)

Max.: 3 kW
(4.08 hp)

Intensity

Min.: 1.9 A

Max.: 12 A

Torque

Min.: 0.64 Nm
(0.47204 ft.lb)

Max.: 7.2 Nm
(5.310447 ft.lb)

Rotational speed

3,000 rpm, 5,000 rpm
(18,849.5559 rad.min-1, 31,415.9265 rad.min-1)

Description

· A new electromagnetic design scheme reduces the cogging torque of the motor, reduces the temperature rise and improves the performance; · The design of motor pole pairs 5 pairs has the characteristics of smooth start, low noise, high power density and high efficiency; · The optimization of magnetic steel and the new structural process design realize the design of small and light weight; · The protection level is IP65, greatly improving the environmental resistance; · The highest speed is 5000rpm, which can meet the needs of high-speed application; · Equipped with a variety of specifications of encoder, up to 24 bit, can achieve high-precision servo control. Application Electronic equipment Packaging equipment Printing equipment CNC machinery Industrial robot Lithium battery equipment Glass carving equipment Stage equipment Metal grinding machinery
