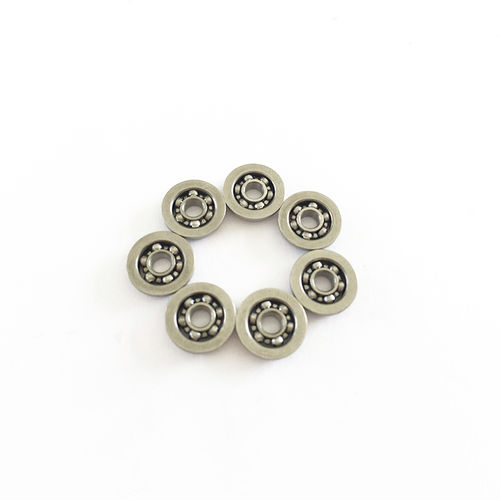

Ball bearing FR seriesaxialsteelflange
Add to favorites
Compare this product
Characteristics
- Rolling element
- ball bearing
- Configuration
- axial
- Material
- steel
- Applications
- flange
- Other characteristics
- sealed, miniature
- Inside diameter
Min.: 1.19 mm
(0.05 in)Max.: 12.7 mm
(0.5 in)- Outside diameter
Min.: 3.97 mm
(0.16 in)Max.: 34.92 mm
(1.37 in)- Width
Min.: 1.588 mm
(0.063 in)Max.: 7.938 mm
(0.313 in)
Description
Flanged ball bearings have a solid steel flange on the outer ring. When there is no connector at one end of the shaft and it needs to be fixed on the part, flange ball bearings or flange bearings are your best choice. Flange ball bearings make axial positioning easier and eliminate the need for bearing housings in applications. In addition, flanges can also help prevent axial movement of bearings when thrust loads are generated on them.
Catalogs
No catalogs are available for this product.
See all of Shanghai SXD Precision Bearing Production Co., Ltd‘s catalogsOther Shanghai SXD Precision Bearing Production Co., Ltd products
Miniature Bearing
