Ball bearing SFR series
axialstainless steelfor motors

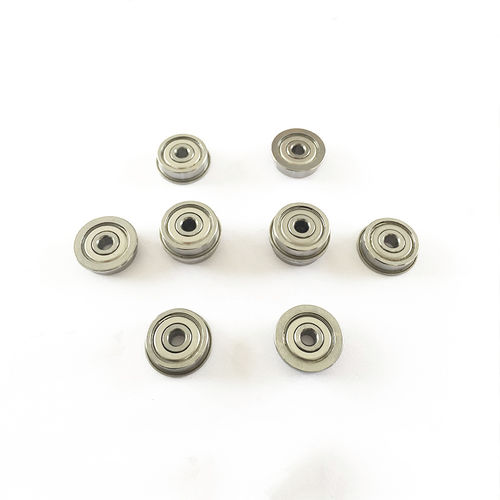

Ball bearing - SFR series - Shanghai SXD Precision Bearing Production Co., Ltd - axial / stainless steel / for motors
Ball bearing - SFR series - Shanghai SXD Precision Bearing Production Co., Ltd - axial / stainless steel / for motors
Ball bearing - SFR series - Shanghai SXD Precision Bearing Production Co., Ltd - axial / stainless steel / for motors - image - 2
Ball bearing - SFR series - Shanghai SXD Precision Bearing Production Co., Ltd - axial / stainless steel / for motors - image - 3
Add to favorites
Compare this product

Characteristics

Rolling element
ball bearing
Configuration
axial
Material
stainless steel
Applications
for motors, flange, for printing machines, for medical equipment, for the food industry, for the food industry, for instrumentation
Other characteristics
high-speed, sealed, miniature
Inside diameter

Min.: 1.98 mm
(0.08 in)

Max.: 12.7 mm
(0.5 in)

Outside diameter

Min.: 6.35 mm
(0.25 in)

Max.: 34.92 mm
(1.37 in)

Width

Min.: 2.381 mm
(0.094 in)

Max.: 7.938 mm
(0.313 in)

Description

SXD produces stainless steel inch flange miniature bearings in all inch sizes. Stainless steel materials can be 440 (9Cr18), 420 (9Cr13), or 316 stainless steel. Sainless steel inch flange miniature ball bearings can prevent corrosion caused by certain acids or moisture. They are widely used in medical equipment, low-temperature engineering, optical instruments, high-speed machine tools, high-speed motors, printing machinery, etc Food processing machinery and other fields.
