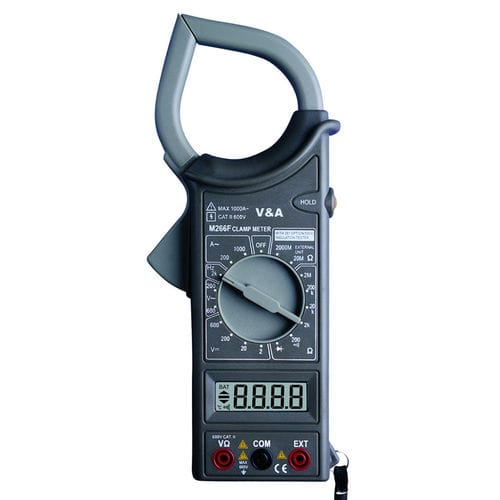

Digital clamp multimeter M266 seriesportable1000 V1000 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 1000 A
- Safety rating
- cat II
- Additional features
- frequency
- Other characteristics
- AC/DC
Description
M266
· DC Voltage: 1000V ± 0.8%
· AC Voltage: 750V ??.2%
· AC Current: 200 - 600A ±2.0%, 600 ~ 1000A ±3.0%
· Resistance: 200Ω, 20KΩ±1.0%
· Continuity check: Built in buzzer will sound
· Data hold
· Display: LCD size 15 x 47 mm
· Dimension: 70 x 230 x 37mm
· Weight: 310g
M266A
· DC Voltage: 2 / 20 / 200V ± 0.5%, 1000V ± 0.8%
· AC Voltage: 200V ± 1.0% 750 ± 1.2%
· AC Current: 200 ~ 600A ± 2.0%, 600 ~ 1000A ± 3.0%
· Resistance: 200Ω, 20KΩ, 2MΩ ± 1.0%
· Frequency: 2KHz±3%
· Diode Test: Check forward or reverse
· Continuity check: Built in buzzer will sound
· Peak hold (Special function)
· Display: LCD size 15 x 47 mm
· Dimension: 70 x 230 x 37mm
· Weight: 310g
