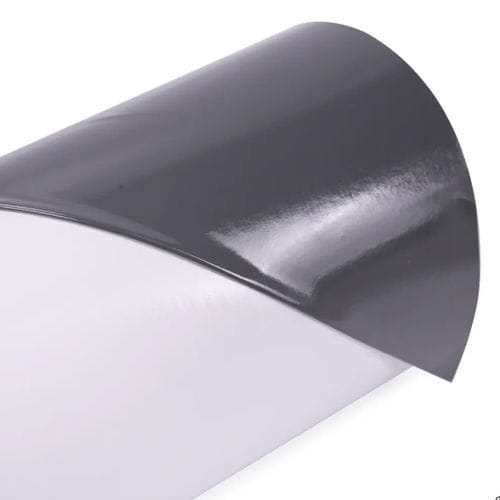

Packaging film UHA003S

releaseadhesiveliner

Product overview
PVC self-adhesive vinyl with a double PE-coated release liner is engineered for applications requiring excellent liner flatness and consistent converting. The double PE coating reduces moisture-induced curling during printing, storage and handling. Available in monomeric and polymeric PVC films with water-based or solvent-based adhesive options suitable for advertising graphics, decals and signage.

Features

• High curl resistance for improved flatness and runnability
• Good dimensional stability during handling and application
• Excellent printability across solvent, eco-solvent, latex and UV ink systems

Applications

• Automotive and vehicle graphics
• Advertising, branding and promotional graphics
• Stickers, decals and custom printed graphics
• Indoor and outdoor signage

Available specifications (table)
Model | Material Type | Face Film Thickness (μm) | Adhesive | Release Liner | Finish | Ink Type
UHA003S | Monomeric PVC | 65 | White / Water-Based | 110 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHA004S | Monomeric PVC | 65 | Black / Water-Based | 110 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHB707S | Monomeric PVC | 120 | White / Water-Based | 170 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHF208S | Monomeric PVC | 75 | Grey / Solvent-Based | 110 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHF508S | Monomeric PVC | 100 | Grey / Solvent-Based | 130 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHBc01Q | Monomeric PVC | 85 | White / Solvent-Based | 140 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHB401Q | Monomeric PVC | 90 | White / Solvent-Based | 140 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHB501Q | Monomeric PVC | 100 | White / Solvent-Based | 140 gsm Double-Sided PE-coated paper | Gloss | Solvent / Eco-Solvent; Latex/UV Curable
UHG505 | Polymeric PVC | 100 | Clear Solvent-Based / Permanent | 160 gsm Double-Sided PE-coated paper / air egress | Gloss | Solvent / Eco-Solvent; Latex/UV Curable

Custom options
Custom options include roll width and length, face film thickness, finish, adhesive type and color, release liner weight and PE coating, air-egress liner options, packaging and branding.

How to choose

• Choose PVC type: monomeric for flat, short-term applications; polymeric for more demanding outdoor or vehicle applications
• Select adhesive system and permanence (water-based vs solvent-based; permanent vs removable) based on substrate and service life
• Consider adhesive color for backing contrast where graphics require it
• For vehicle graphics, prefer polymeric PVC and air-egress liner options for easier application
• Confirm printer and ink compatibility with solvent, eco-solvent, latex or UV systems

How to use

• Print graphics and allow inks to dry fully
• Clean the application surface of dust, oil and moisture
• Cut vinyl to required size
• Peel back a small section of the PE-coated release liner
• Position the vinyl and apply gradually with a squeegee from the centre outward
• Smooth out air bubbles or wrinkles and trim excess, pressing edges firmly

Technical specifications

• Face material: Monomeric PVC and Polymeric PVC options
• Face film thickness range: typically 65 μm to 120 μm (examples: 65, 75, 85, 90, 100, 120 μm)
• Adhesive types: Water-based (white/black), Solvent-based (white/black/grey), Clear solvent-based permanent
• Release liner: Double-sided PE-coated paper (110–170 gsm), air-egress options available
• Finish: Gloss (examples listed in table)
• Compatible ink systems: Solvent, Eco-Solvent, Latex, UV Curable
• Representative models: UHA003S, UHA004S, UHB707S, UHF208S, UHF508S, UHBc01Q, UHB401Q, UHB501Q, UHG505
